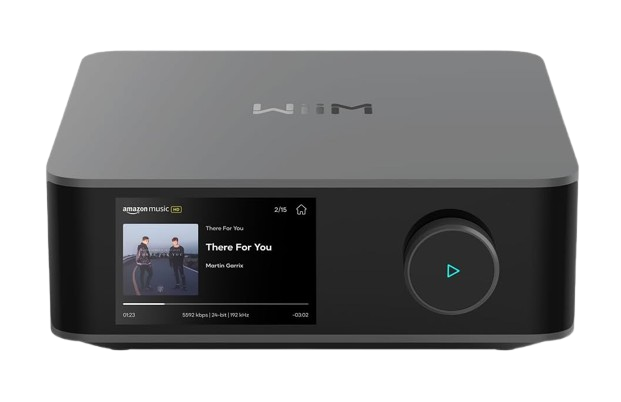

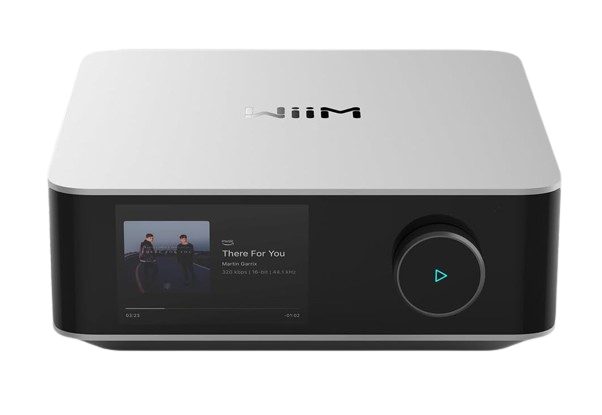

The WiiM AMP Ultra combines powerful stereo amplification with advanced network streaming, creating a versatile hub for modern home audio. With high-resolution streaming, extensive connectivity, multi-room functionality and intuitive app control, it provides effortless access to your favourite music while delivering clean, dynamic and detailed sound.

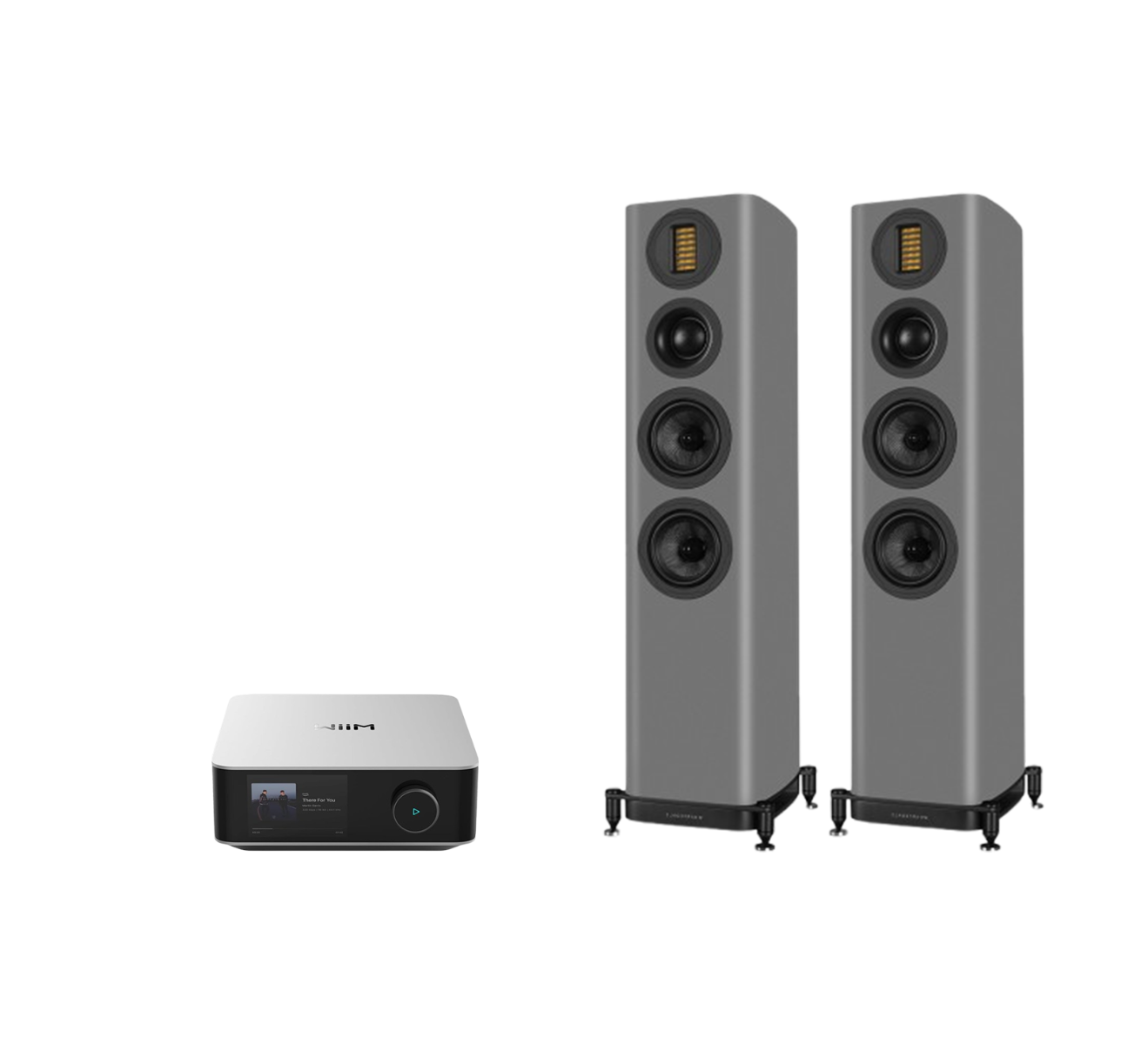

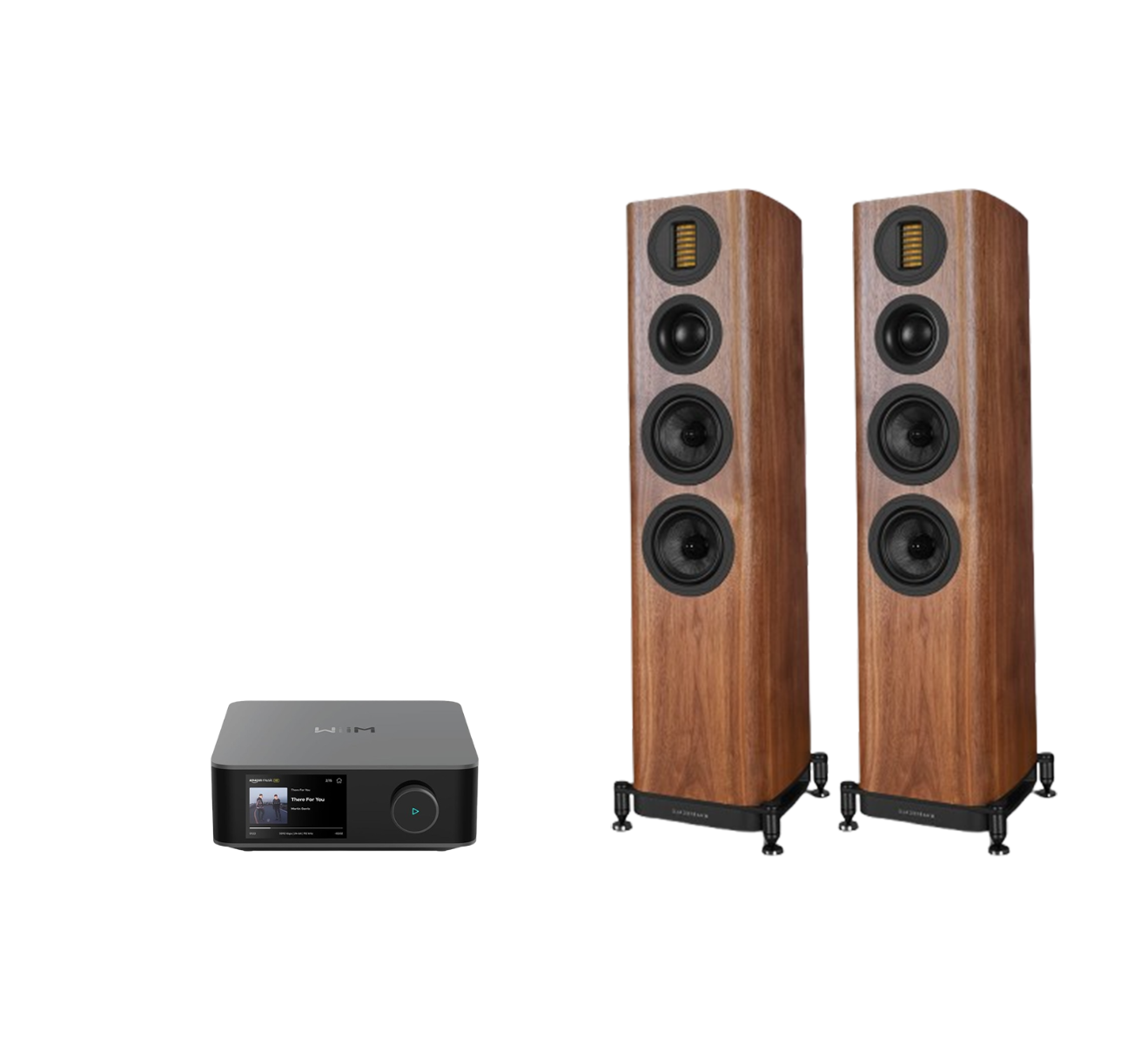

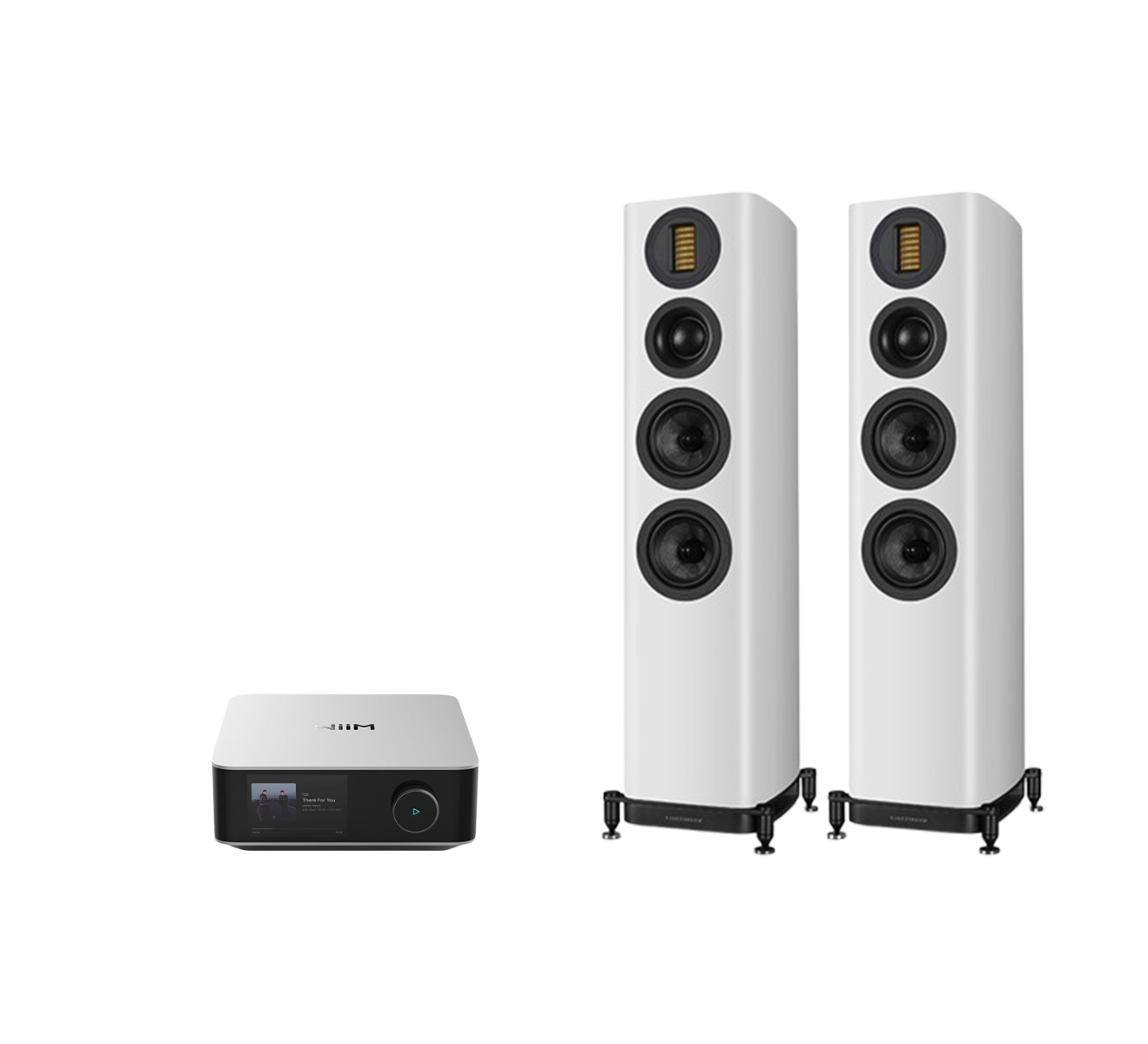

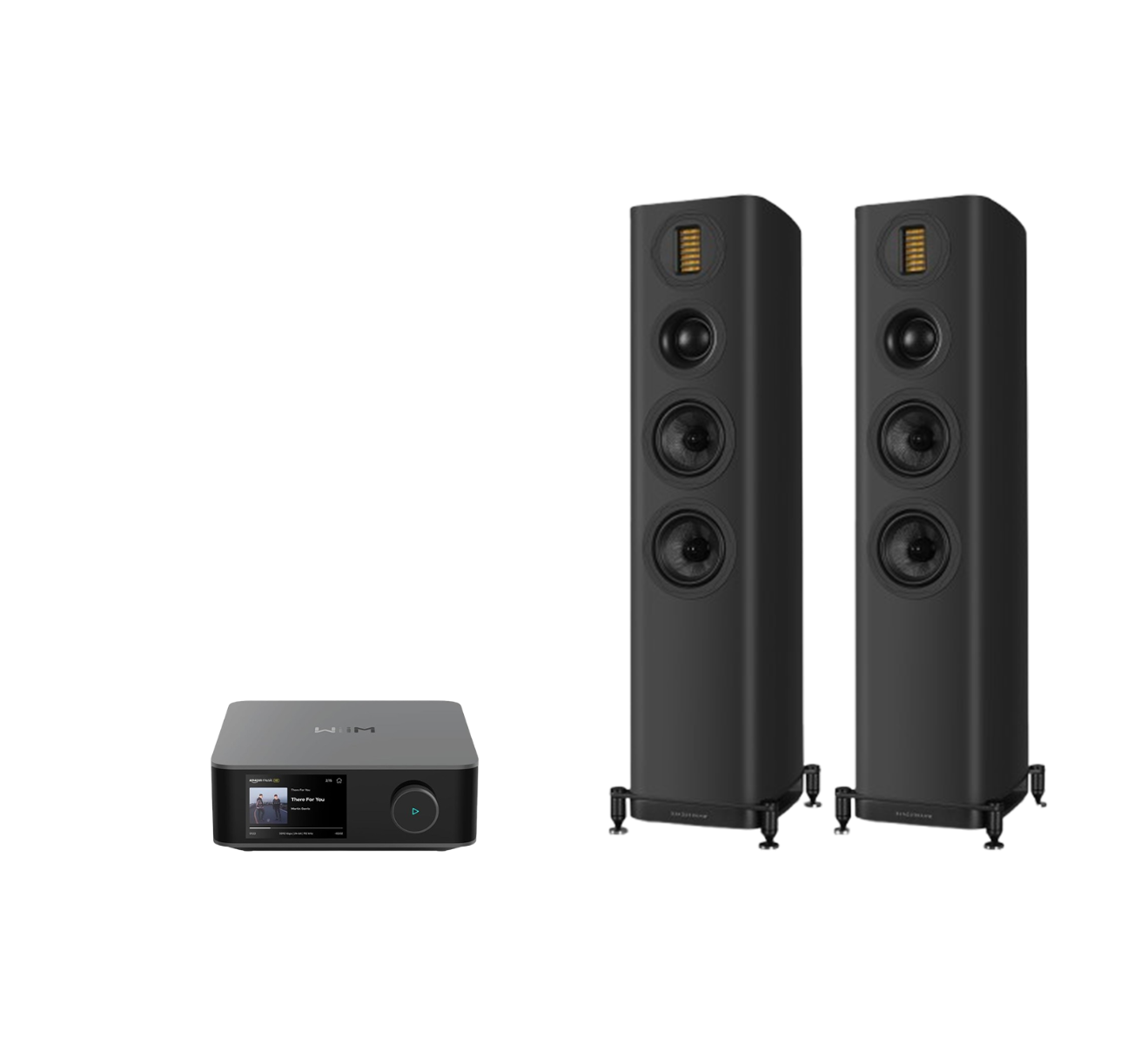

The Wharfedale EVO 5.3 floorstanding speakers deliver a sophisticated and immersive listening experience with powerful bass, expressive midrange and smooth, detailed high frequencies. Featuring advanced driver technology and carefully engineered cabinets, they create a wide, natural soundstage with impressive scale and musicality, making them an excellent partner for the powerful and connected WiiM AMP Ultra.
| WiiM AMP Ultra Network Stereo Amplifier | |
|---|---|
| Power Output | 100 W per channel @ 8 Ω; 200 W per channel @ 4 Ω (Class D with Post-Filter Feedback) |
| Total Harmonic Distortion (THD+N) | ≤ 0.005% (-106 dB) |
| Signal-to-Noise Ratio | ≥ 120 dB |
| Damping Factor | 94 |
| Frequency Response | 20 Hz – 20 kHz ±0.5 dB |
| Supported Impedance Range | 2 Ω – 8 Ω |
| DAC | ESS ES9039Q2M |
| Amplifier Chips | Dual TI TPA3255 |
| Op-Amps | TI OPA1612 |
| Audio Resolution Support | Up to 24-bit / 192 kHz (bit-perfect) |
| Analogue Input | 1 x Stereo RCA |
| Optical Input | 1 x TOSLINK (up to 192 kHz / 24-bit) |
| HDMI Input | HDMI ARC |
| Subwoofer Output | RCA |
| USB Audio Output | USB UAC 2.0 (8-channel support) |
| Speaker Outputs | Gold-plated binding posts |
| Wireless Connectivity | Wi-Fi 6 (upgradeable to Wi-Fi 6E) |
| Bluetooth | Version 5.3 (A2DP / AVRCP / HID) |
| Ethernet | Wired Ethernet (100 Mbps) |
| Streaming Support | Chromecast Audio, Spotify Connect, TIDAL Connect, DLNA via WiiM Home app |
| Multi-Room Audio | Supported (Google Home, Alexa) |
| EQ & Presets | Independent input-specific EQ and presets |
| Display | 3.5-inch capacitive touchscreen |
| Controls | Rotary control knob for volume and playback |
| Chassis | Precision-machined aluminium unibody |
| Dimensions (W x D x H) | 200 x 211 x 76 mm |
| Weight | 2.45 kg |
| Wharfedale Evo 5.3 Floorstanding Speakers | |
| Model | EVO 5.3 |
| General Description | 3-way floorstanding speaker |
| Enclosure Type | Bass reflex |
| Transducer Complement | 3-way |
| Bass Driver | 5" (130mm) Black Woven Kevlar Cone x2 |
| Midrange Driver | 2" (50mm) Soft Dome |
| Treble Driver | 35 x 70mm AMT |
| Full-range Driver | N/A |
| ABR | N/A |
| AV Shield | No |
| Sensitivity (2.83V @ 1m) | 88dB |
| Recommended Amplifier Power | 25–150W |
| Peak SPL | 106dB |
| Nominal Impedance | 4Ω (8Ω compatible) |
| Minimum Impedance | 3.5Ω |
| Frequency Response (+/-3dB) | 46Hz – 24kHz |
| Bass Extension (-6dB) | 40Hz |
| Crossover Frequency | 825 Hz, 4kHz |
| Cabinet Volume (in litres) | 35.4L |
| Dimensions (HxWxD) | Height: 933mm, Width: 266mm, Depth (with grille + terminal): 285 + 40mm |
| Carton Size (mm) | 430 x 350 x 1055 |
| Net Weight | 21.5kg / pcs |
| Gross Weight | 23.0kg / ctn |
| Finish | Walnut / Black Oak Veneer |
| Standard Accessories | Spike seat |
