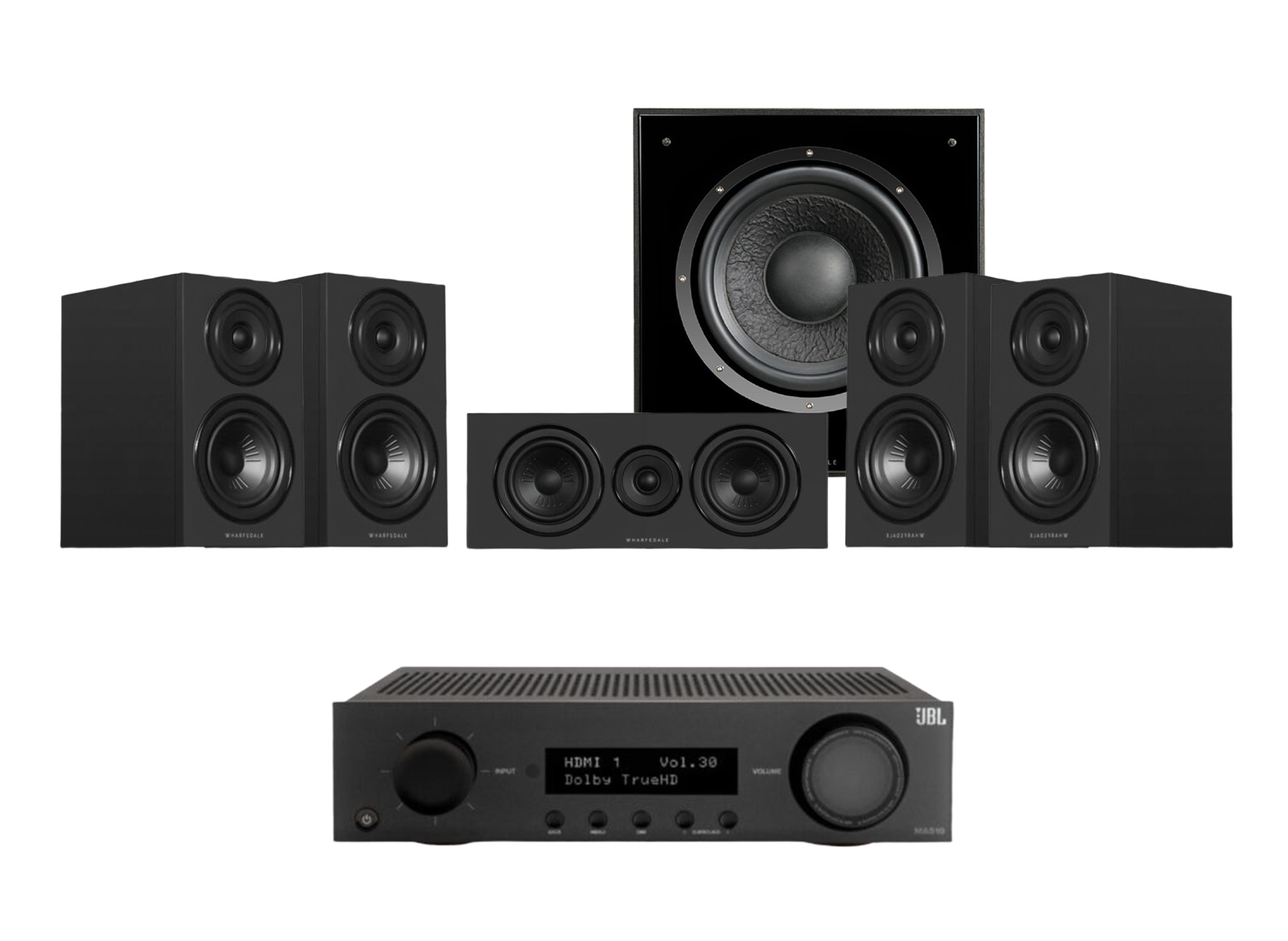

Wharfedale Diamond 12.1i HCP 5.1 Home Cinema Pack - Black + JBL MA510 5.2 - Black
£1,798.00
✓ 2 Year Warranty included
✓ Authorised UK Dealer
The Wharfedale Diamond 12.1i HCP 5.1 Home Cinema Pack with JBL MA510 AV Receiver delivers an immersive surround sound experience with detailed audio, crystal-clear dialogue and deep, controlled bass. Expertly matched for outstanding performance, this complete home cinema system combines premium Wharfedale speakers with advanced JBL 8K AV processing, creating the perfect setup for films, gaming, TV and music.

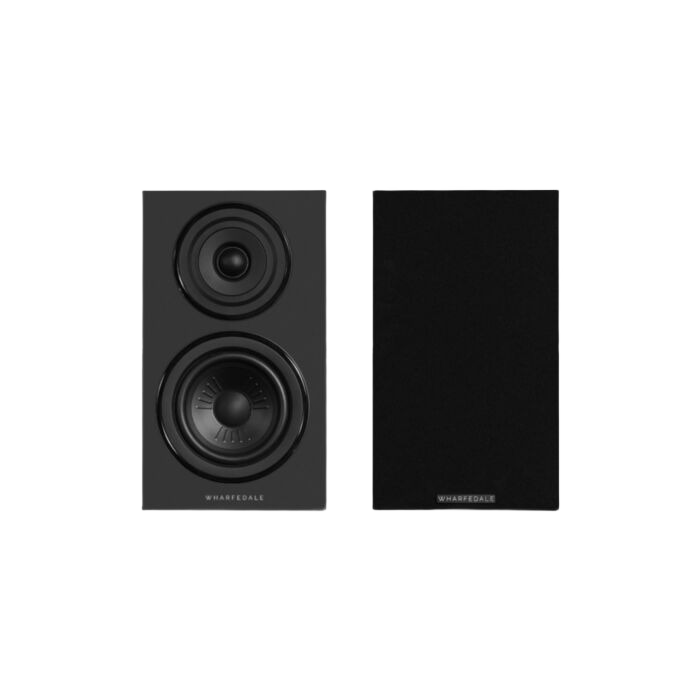

Wharfedale Diamond 12.1i Bookshelf Speakers
Detailed Audio That Brings Entertainment To Life
The Wharfedale Diamond 12.1i Bookshelf Speakers deliver rich, balanced sound with impressive clarity and precision. Designed for both music and home cinema, they create an expansive soundstage that enhances every soundtrack and recording. Their refined performance makes them an ideal choice for immersive front and surround channel duties.

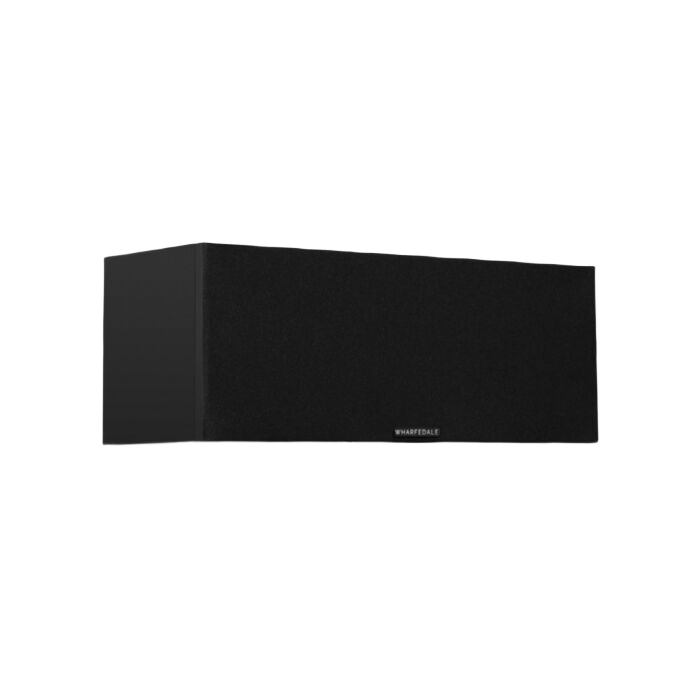

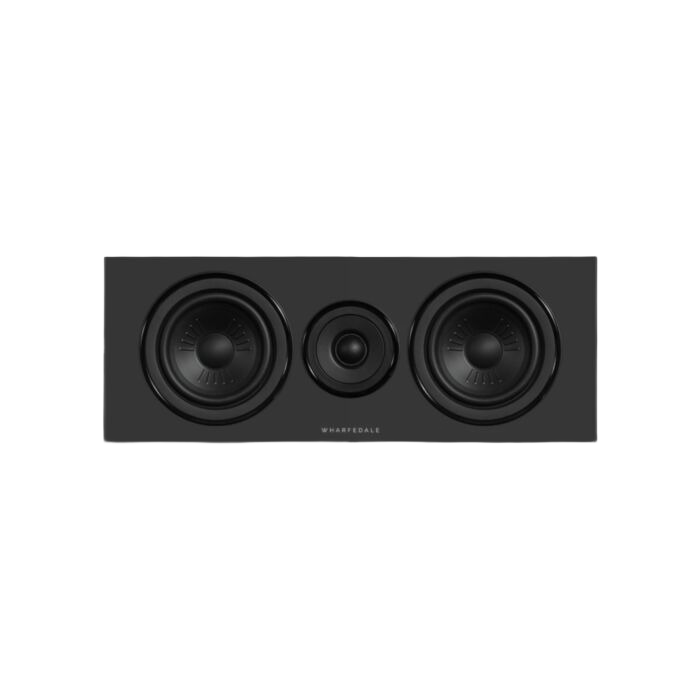

Wharfedale Diamond 12.Ci Centre Speaker
Hear Every Word With Exceptional Clarity
The Wharfedale Diamond 12.Ci Centre Speaker ensures dialogue remains crisp, natural and perfectly focused throughout every film and television programme. Designed to integrate seamlessly with the Diamond Series, it delivers accurate vocal reproduction that enhances the realism and immersion of your complete home cinema system.

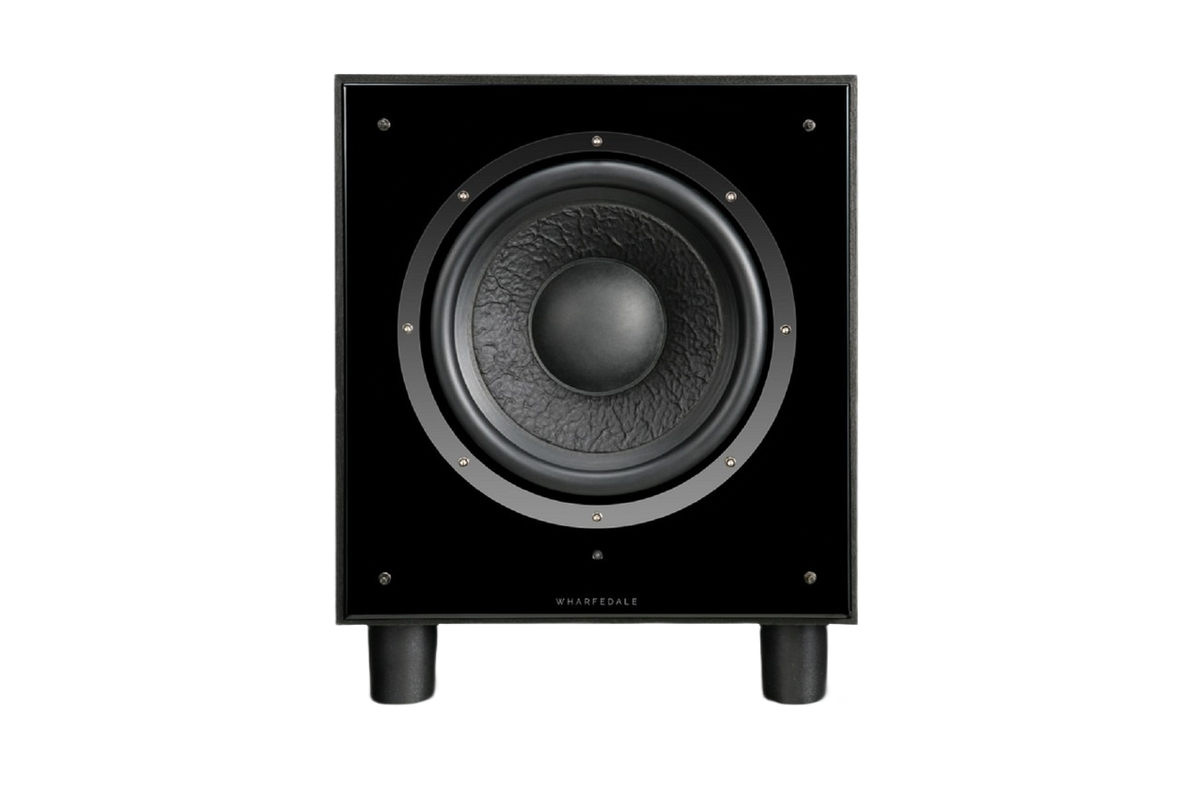

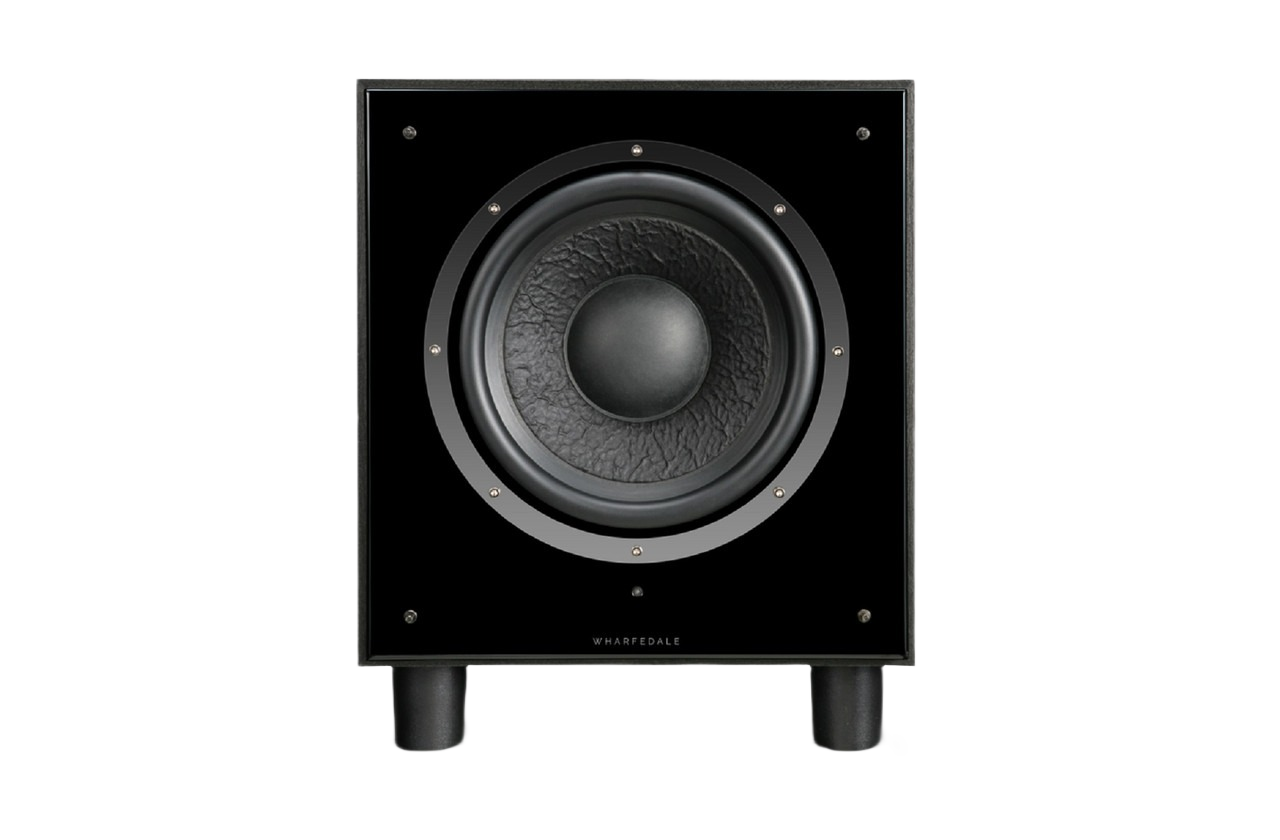

Wharfedale SW-10 Subwoofer
Deep Bass For Greater Cinematic Impact
The Wharfedale SW-10 Subwoofer delivers powerful, controlled low-frequency performance that adds depth and excitement to every film, game and music track. Designed to complement the Diamond speaker range, it produces rich bass that enhances immersion while maintaining excellent balance and precision throughout your home cinema experience.

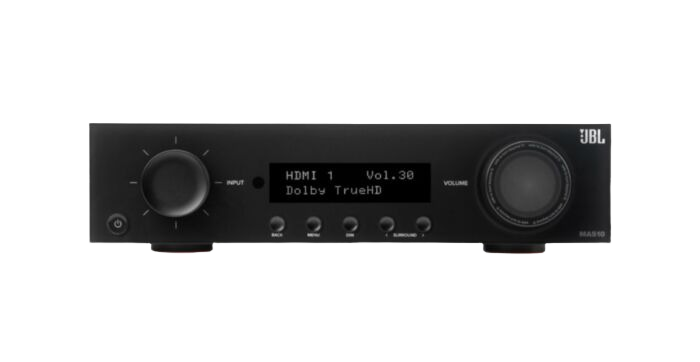

JBL MA510 5.2 8K AV Receiver
Advanced 8K Performance At The Heart Of Your System
The JBL MA510 5.2 8K AV Receiver powers your home cinema with dynamic amplification, advanced HDMI connectivity and immersive surround sound processing. Designed to bring together all your entertainment sources, it delivers exceptional performance for films, gaming, TV and music while providing the flexibility needed for a modern home cinema setup.
Wharfedale Diamond 12.1i Book Shelf Speakers
Driver Types: 5-inch PP cone mid-bass, 1-inch textile dome tweeter
Sensitivity: 87dB (2.83V @ 1m)
Nominal Impedance: 8Ω
Minimum Impedance: 3.9Ω
Frequency Response: 65Hz–20kHz (±3dB)
Bass Extension: 60Hz (at -6dB)
Crossover Frequency: 2.6kHz
Recommended Amp Power: 20–100W
Cabinet Type: Bass Reflex with rear port
Dimensions (H x W x D): 312 x 180 x 278 mm
Weight: 6.8 kg each
Wharfedale Diamond 12.Ci Centre Speaker
Drivers: 2 × 5″ (130 mm) Klarity™ mid/bass; 1″ (25 mm) textile dome tweeter
Sensitivity: 90 dB (2.83 V @ 1 m)
Recommended Amplifier Power: 20 – 120 W
Peak SPL: 96 dB
Impedance: Nominal 8 Ω, Minimum ~4 Ω
Frequency Response (±3 dB): 90 Hz – 20 kHz
Bass Extension (–6 dB): ~80 Hz
Crossover Frequency: ~2.2 kHz
Cabinet Volume: ~8.7 litres
Dimensions (H × W × D): 180 × 480 × (180 + 28) mm
Weight: 8.5 kg
Wharfedale SW-10 Subwoofer
Drive Units: 1 x (10") 250mm cone long-throw
Frequency Response: 40 - 120Hz ±3dB
Amplifier Power Output: 200W
Peak Power Output: 350W
Line Input Sensitivity: 200mV for maximum output
Crossover Range: 30 - 150Hz
Inputs: Stereo Line In (2 x RCA Phono), Mono (LFE) Line In (RCA Phono)
Input Impedance: Line Input 10kΩ, LFE 5kΩ
Signal-to-Noise Ratio (S/N): ≥85dB
Average Max Output @1m: 110dB
Features: Phase inversion, Auto on-off
Dimensions: Height: (358+58)mm (with feet), Width: 336mm, Depth: (366+15)mm
Net Weight: 15kg
Finishes: Cabinet: Rosewood / Walnut Pearl / White Sandex / Blackwood Vinyl with Hi-gloss baffle
Accessories: IEC power cord
JBL MA510 5.2 8K AV Receiver
Channels: 5.2
Power Output (8 Ω, 20 Hz–20 kHz, two channels driven, 0.5% THD): 75 W RMS per channel
Power Output (4 Ω, 20 Hz–20 kHz, two channels driven, 0.5% THD): 100 W RMS per channel
HDMI: 4 × HDMI 2.1 inputs + 1 × HDMI output (eARC/ARC)
Video Support: 8K/60 Hz and 4K/120 Hz passthrough, HDR10+, Dolby Vision, VRR, ALLM, QFT, HFR
Digital Audio Inputs: 1 × coaxial, 1 × optical
Analogue Inputs: 2 × stereo RCA (line-level)
Pre-Outs: 2 × subwoofer pre-outs (single-ended RCA)
Wireless Connectivity: Wi-Fi (2.4 GHz/5 GHz), Bluetooth v4.1 LE
Supported Audio File Formats: MP3, MPEG-4 AAC (up to 48 kHz/320 kbps), WMA (up to 48 kHz/192 kbps), ALAC, FLAC, PCM/WAV/AIFF up to 192 kHz/24-bit
DAC: 192 kHz / 24-bit
Special Features: Pure Direct mode, EZ/Set EQ room calibration
Power Supply: 110–240 V AC, 50–60 Hz
Max Power Consumption: 300 W
Standby Power Consumption: < 0.5 W
Dimensions (W × H × D): 109.9 mm × 432.0 mm × 347.6 mm (4.3″ × 17.0″ × 13.7″)
Weight: approx. 5.4 kg (12 lb)
