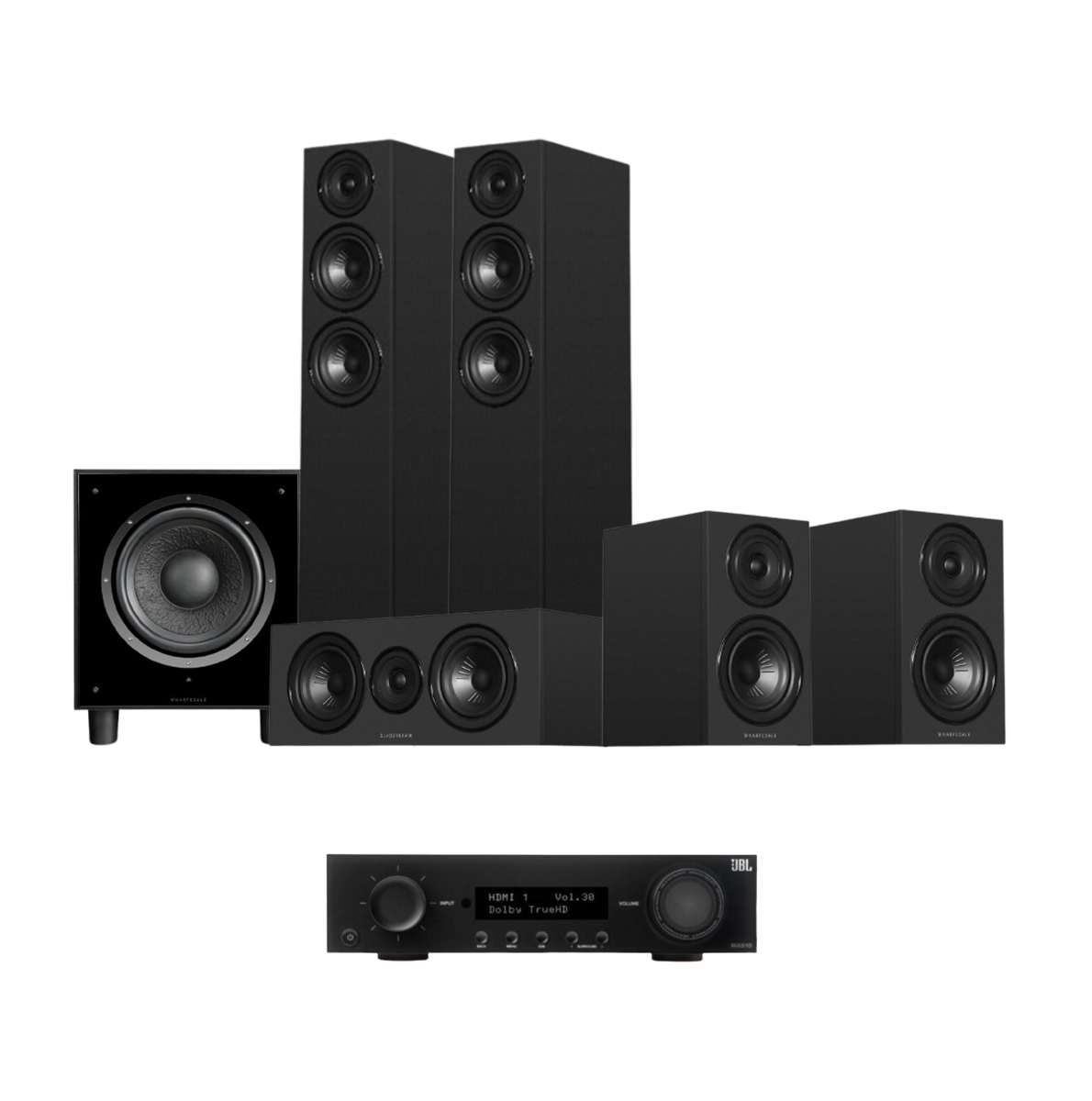

Wharfedale Diamond 12.3i HCP 5.1 Home Cinema Pack - Black + JBL MA510 - Black
£2,098.00
✓ 2 Year Warranty included
✓ Authorised UK Dealer
✓ FREE Next Working Day Courier Service to mainland UK
What's included:

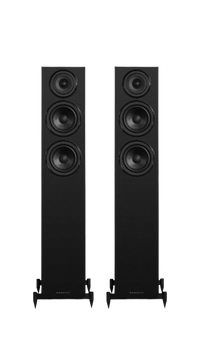

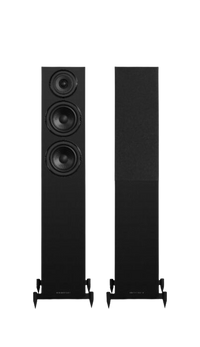

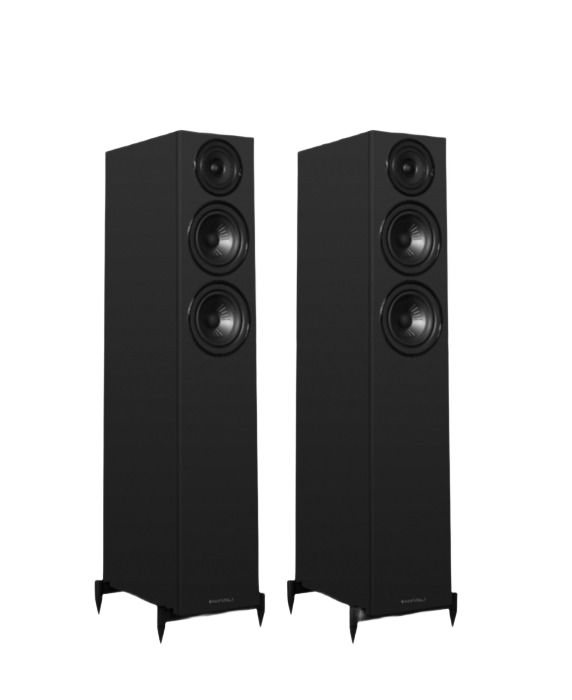

1. Wharfedale 12.3i Floor Standing Speakers
A slim 2.5‑way floorstanding speaker pair from the latest Diamond 12i series. Designed to give “tower‑speaker” scale and presence while remaining compact enough for typical living rooms — suitable for music systems or home‑cinema front‑speaker setups.

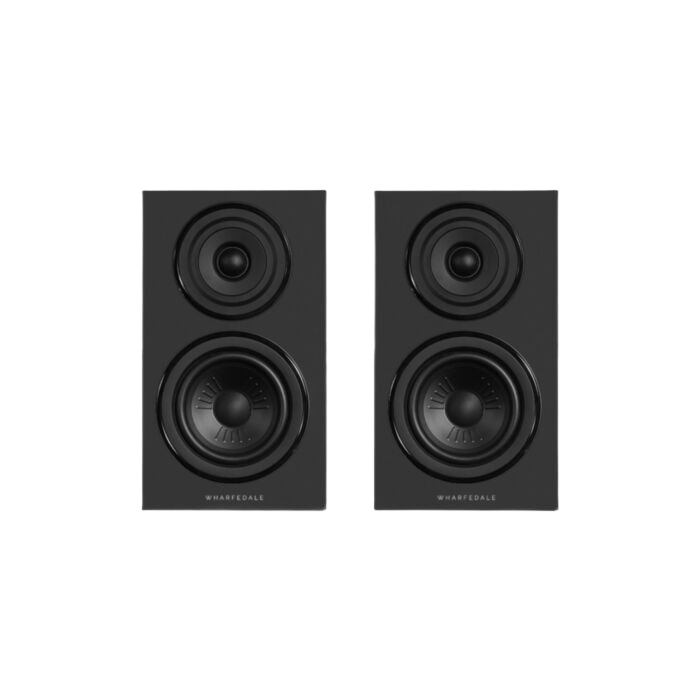

2. Wharfedale 12.1i Bookshelf Speakers
The Wharfedale Diamond 12.1i are compact 2-way bookshelf/standmount speakers designed to deliver full, detailed sound despite their modest size.

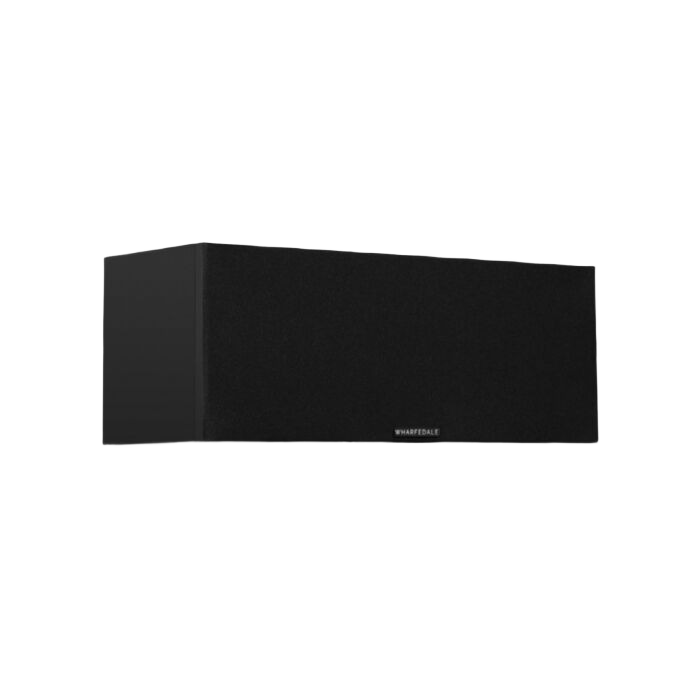

3. Wharfedale 12.Ci Centre Speaker
The Wharfedale Diamond 12.C is the dedicated centre-channel model in the Diamond 12 lineup — designed to deliver clear, impactful dialogue, vocals and midrange/bass for home-cinema or surround-sound systems.

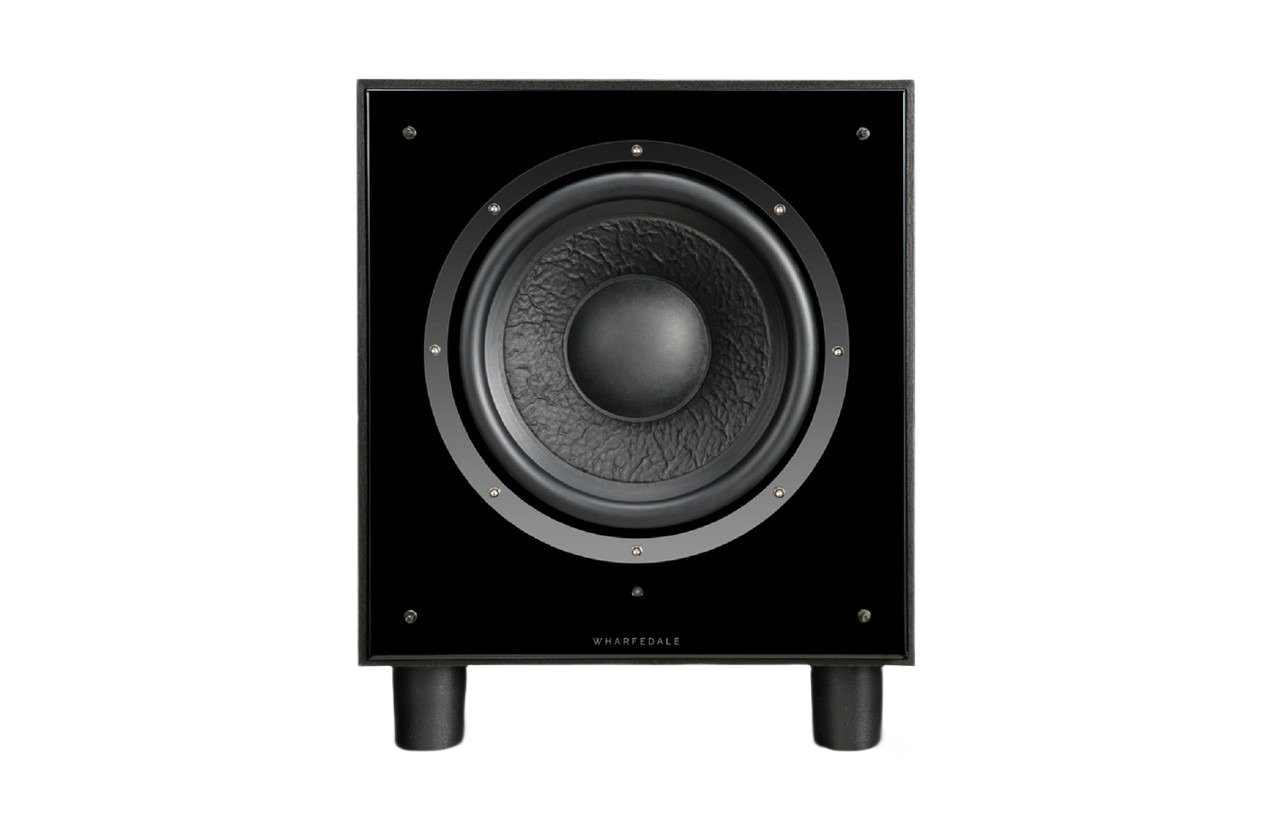

4. Wharfedale SW-10 Subwoofer
A powered 10″ (250 mm) long-throw subwoofer with built-in 200W amplifier (peak ~350W), designed to deliver powerful low-frequency bass (≈ 40-120 Hz) for both music and movies.

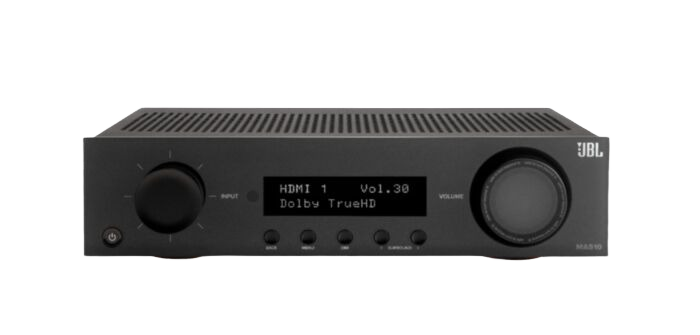

5. JBL MA510 5.2 8K AV Receiver
The JBL MA510 is a 5.2-channel AV receiver designed for full-featured home cinema setups, offering powerful surround sound and cutting-edge 8K video passthrough.
Detailed, Expressive Bookshelf Sound
The Diamond 12.1i delivers the refined performance Wharfedale is known for, offering rich midrange detail, smooth treble, and surprising low-end depth from a compact cabinet. Ideal for music or home cinema, these speakers produce a balanced, engaging soundstage that fills the room with clarity and warmth. Their stylish, modern design allows them to blend effortlessly into any living space.
Clear and Dynamic Home Cinema Dialogue
Designed as the perfect centrepiece of a home theatre setup, the Diamond 12.Ci ensures dialogue is crisp, natural, and highly intelligible. Its dual driver configuration and precise crossover design deliver seamless vocal reproduction and smooth integration with front and surround speakers. Whether you’re watching blockbuster movies or TV dramas, it anchors every scene with clarity and focus.
Deep, Controlled Bass for Cinematic Impact
The SW-10 adds power, depth, and realism to your movie and music listening. Its long-throw 10-inch driver and efficient amplifier deliver tight, controlled bass that enhances every explosion, beat, or soundtrack moment. Designed to complement the Diamond 12 Series, it offers clean low-frequency extension without muddiness, bringing your system to life with room-filling energy.
Powerful 5.2 AVR with 8K Future-Proof Performance
The JBL MA510 is a feature-packed home cinema receiver built for modern entertainment. Supporting 8K video, Dolby Vision, and 4K/120Hz gaming passthrough, it ensures your system is ready for today’s and tomorrow’s content. With robust 5.2-channel amplification, room EQ, Bluetooth streaming, and flexible HDMI 2.1 connectivity, it forms the heart of an exciting, immersive home theatre experience.
Elegant Floorstanders with Room-Filling Performance
The Diamond 12.3i brings the signature Wharfedale sound to a beautifully slim floor-standing design, delivering a powerful and immersive listening experience without dominating the room. Featuring dual bass drivers and a refined crossover, these speakers offer deep, controlled low frequencies, a textured and natural midrange, and smooth, open treble. Whether used for music or home cinema, the 12.3i provides a spacious, dynamic soundstage that brings every performance to life with clarity, warmth, and effortless presence.

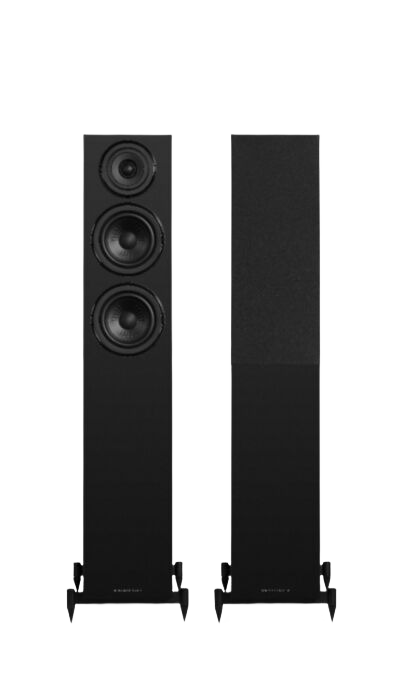

Wharfedale Diamond 12.3i Floor Standing Speakers
Design: 2.5-way floor-standing speaker
Enclosure Type: Bass-reflex, rear-ported
Bass / Mid Drivers: Dual 5″ (130 mm) Klarity™ polypropylene-mica cones
Tweeter: 1″ (25 mm) textile dome
Sensitivity (2.83 V @ 1 m): 89 dB
Recommended Amplifier Power: 30 – 150 W
Peak SPL: 102 dB
Nominal Impedance: 8 Ω (compatible); Minimum Impedance: ~5 Ω
Frequency Response (±3 dB): 45 Hz – 20 kHz
Bass Extension (–6 dB): ~40 Hz
Crossover Frequency: ~2.2 kHz
Cabinet Volume: ~26.6 litres
Dimensions (H × W × D): ~ (925 + 50) × 180 × (320 + 28) mm
Weight: ~19.5 kg per speaker
Wharfedale Diamond 12.1i Book Shelf Speakers
Driver Types: 5-inch PP cone mid-bass, 1-inch textile dome tweeter
Sensitivity: 87dB (2.83V @ 1m)
Nominal Impedance: 8Ω
Minimum Impedance: 3.9Ω
Frequency Response: 65Hz–20kHz (±3dB)
Bass Extension: 60Hz (at -6dB)
Crossover Frequency: 2.6kHz
Recommended Amp Power: 20–100W
Cabinet Type: Bass Reflex with rear port
Dimensions (H x W x D): 312 x 180 x 278 mm
Weight: 6.8 kg each

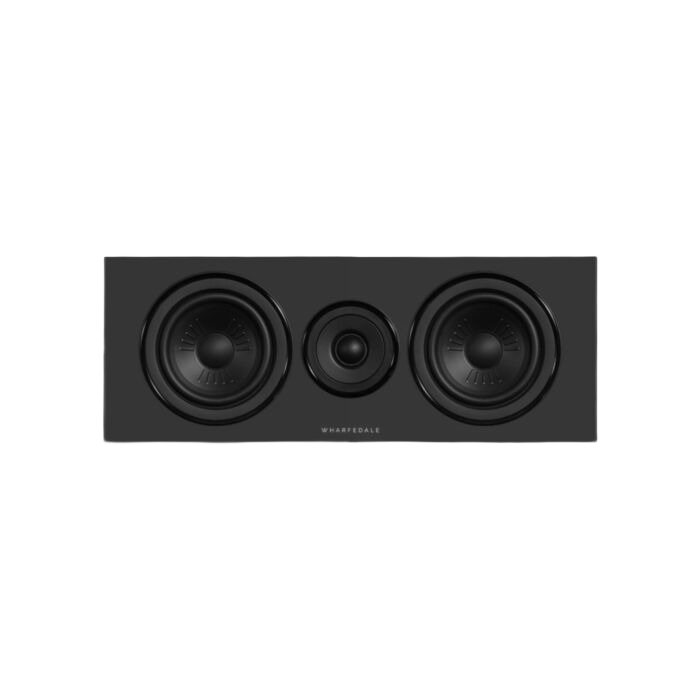

Wharfedale Diamond 12.Ci Centre Speaker
Drivers: 2 × 5″ (130 mm) Klarity™ mid/bass; 1″ (25 mm) textile dome tweeter
Sensitivity: 90 dB (2.83 V @ 1 m)
Recommended Amplifier Power: 20 – 120 W
Peak SPL: 96 dB
Impedance: Nominal 8 Ω, Minimum ~4 Ω
Frequency Response (±3 dB): 90 Hz – 20 kHz
Bass Extension (–6 dB): ~80 Hz
Crossover Frequency: ~2.2 kHz
Cabinet Volume: ~8.7 litres
Dimensions (H × W × D): 180 × 480 × (180 + 28) mm
Weight: 8.5 kg

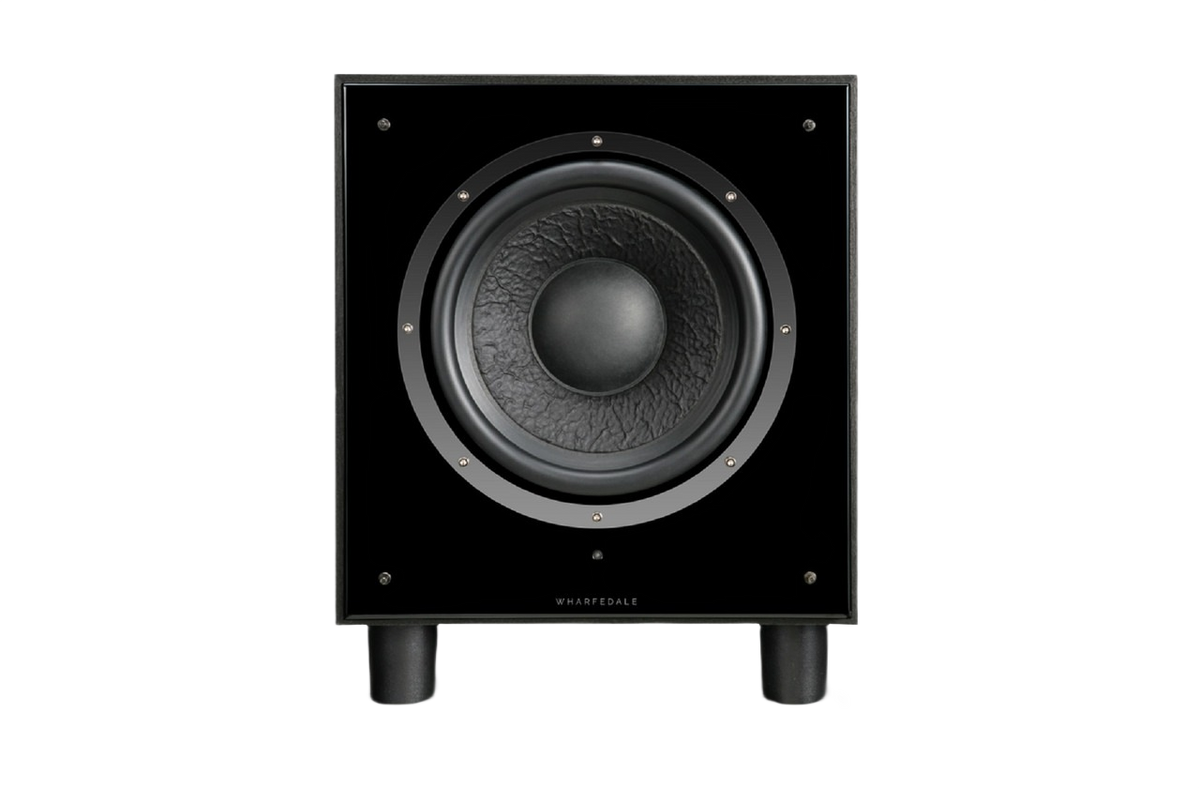

Wharfedale SW-10 Subwoofer
Drive Units: 1 x (10") 250mm cone long-throw
Frequency Response: 40 - 120Hz ±3dB
Amplifier Power Output: 200W
Peak Power Output: 350W
Line Input Sensitivity: 200mV for maximum output
Crossover Range: 30 - 150Hz
Inputs: Stereo Line In (2 x RCA Phono), Mono (LFE) Line In (RCA Phono)
Input Impedance: Line Input 10kΩ, LFE 5kΩ
Signal-to-Noise Ratio (S/N): ≥85dB
Average Max Output @1m: 110dB
Features: Phase inversion, Auto on-off
Dimensions: Height: (358+58)mm (with feet), Width: 336mm, Depth: (366+15)mm
Net Weight: 15kg
Finishes: Cabinet: Rosewood / Walnut Pearl / White Sandex / Blackwood Vinyl with Hi-gloss baffle
Accessories: IEC power cord
JBL MA510 5.2 8K AV Receiver
Channels: 5.2
Power Output (8 Ω, 20 Hz–20 kHz, two channels driven, 0.5% THD): 75 W RMS per channel
Power Output (4 Ω, 20 Hz–20 kHz, two channels driven, 0.5% THD): 100 W RMS per channel
HDMI: 4 × HDMI 2.1 inputs + 1 × HDMI output (eARC/ARC)
Video Support: 8K/60 Hz and 4K/120 Hz passthrough, HDR10+, Dolby Vision, VRR, ALLM, QFT, HFR
Digital Audio Inputs: 1 × coaxial, 1 × optical
Analogue Inputs: 2 × stereo RCA (line-level)
Pre-Outs: 2 × subwoofer pre-outs (single-ended RCA)
Wireless Connectivity: Wi-Fi (2.4 GHz/5 GHz), Bluetooth v4.1 LE
Supported Audio File Formats: MP3, MPEG-4 AAC (up to 48 kHz/320 kbps), WMA (up to 48 kHz/192 kbps), ALAC, FLAC, PCM/WAV/AIFF up to 192 kHz/24-bit
DAC: 192 kHz / 24-bit
Special Features: Pure Direct mode, EZ/Set EQ room calibration
Power Supply: 110–240 V AC, 50–60 Hz
Max Power Consumption: 300 W
Standby Power Consumption: < 0.5 W
Dimensions (W × H × D): 109.9 mm × 432.0 mm × 347.6 mm (4.3″ × 17.0″ × 13.7″)
Weight: approx. 5.4 kg (12 lb)
