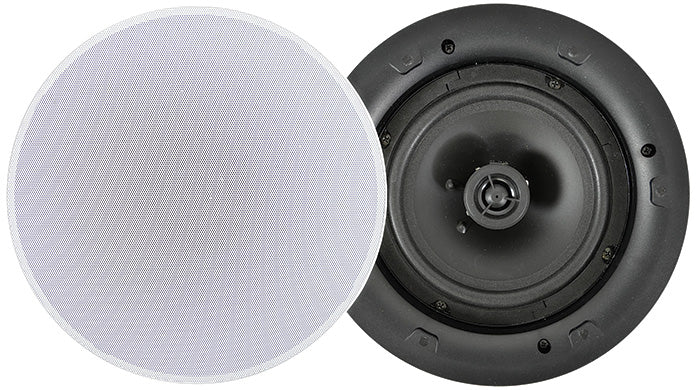

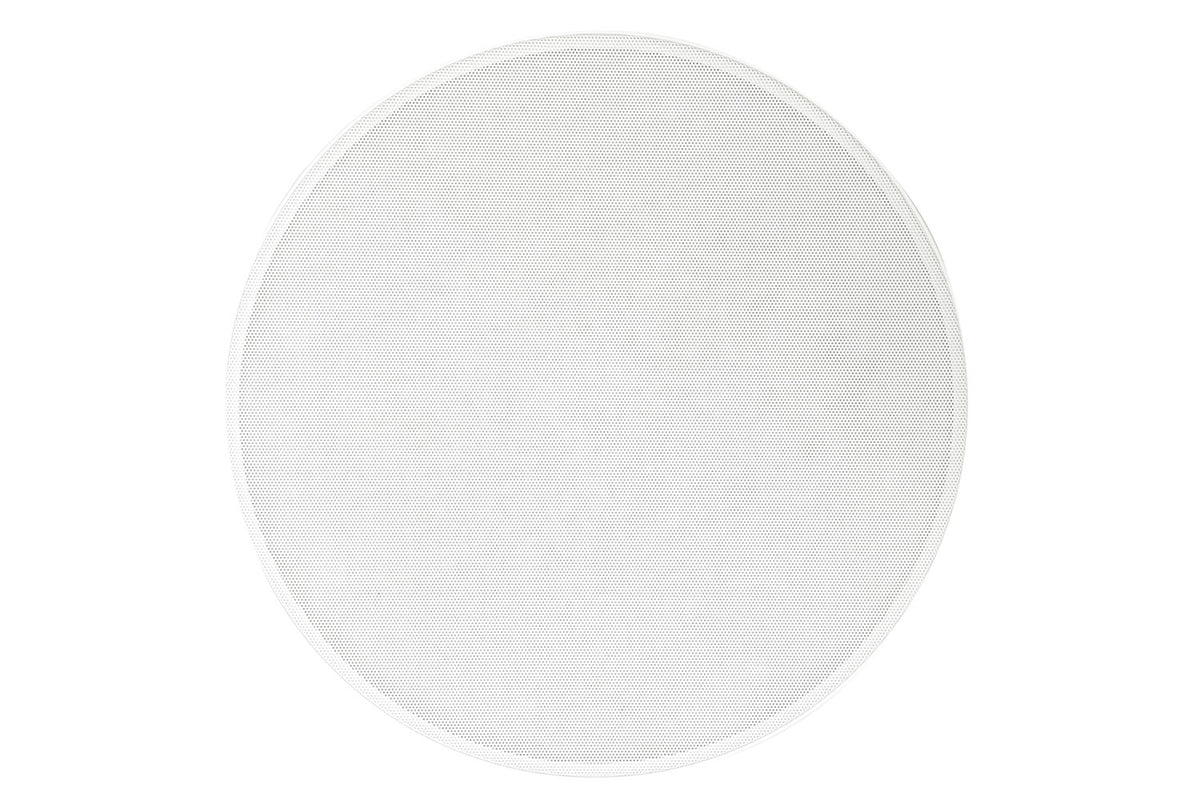

Adastra LP8V 8" 2-Way Low Profile 100V Ceiling Speaker - White (Single)
Sale price
£79.99
Regular price
£89.00
✓ 1 Year Warranty included
✓ Authorised UK Dealer
Some of our best selling install speakers. Easy to install, 2-way ceiling speakers with flared baffle and a low profile easy to place magnetic grille.
Discreet Ceiling Audio for Modern Spaces

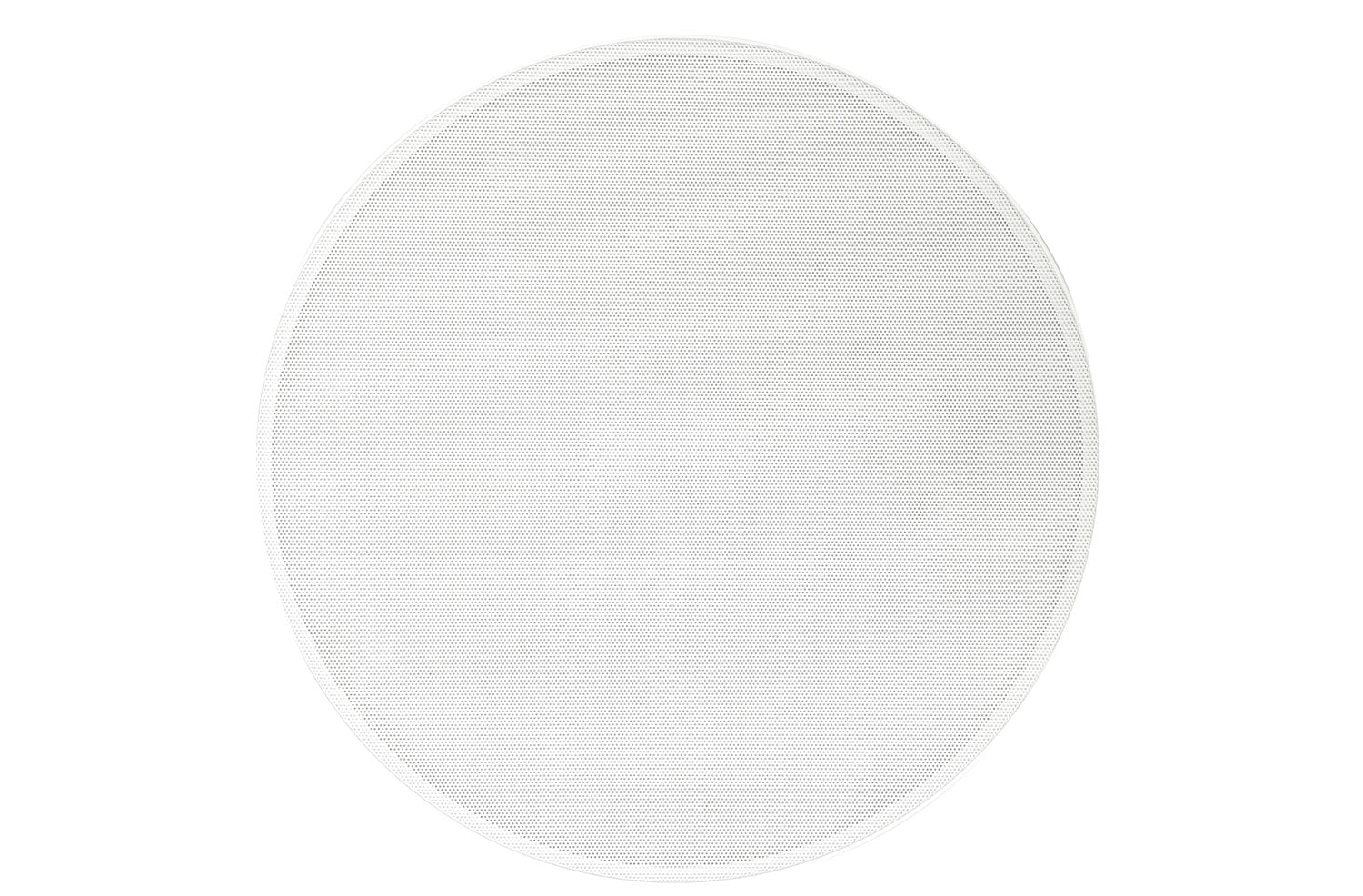

The Adastra LP8V makes it easy to add background music while keeping walls and floors clear of bulky speaker cabinets. Its low-profile design and white frameless magnetic grille sit neatly within suitable suspended or false ceilings, making it a practical option for offices, retail spaces, restaurants and contemporary home interiors. The grille can also be painted to complement the surrounding décor.
Two-Way Sound with a Directional Tweeter

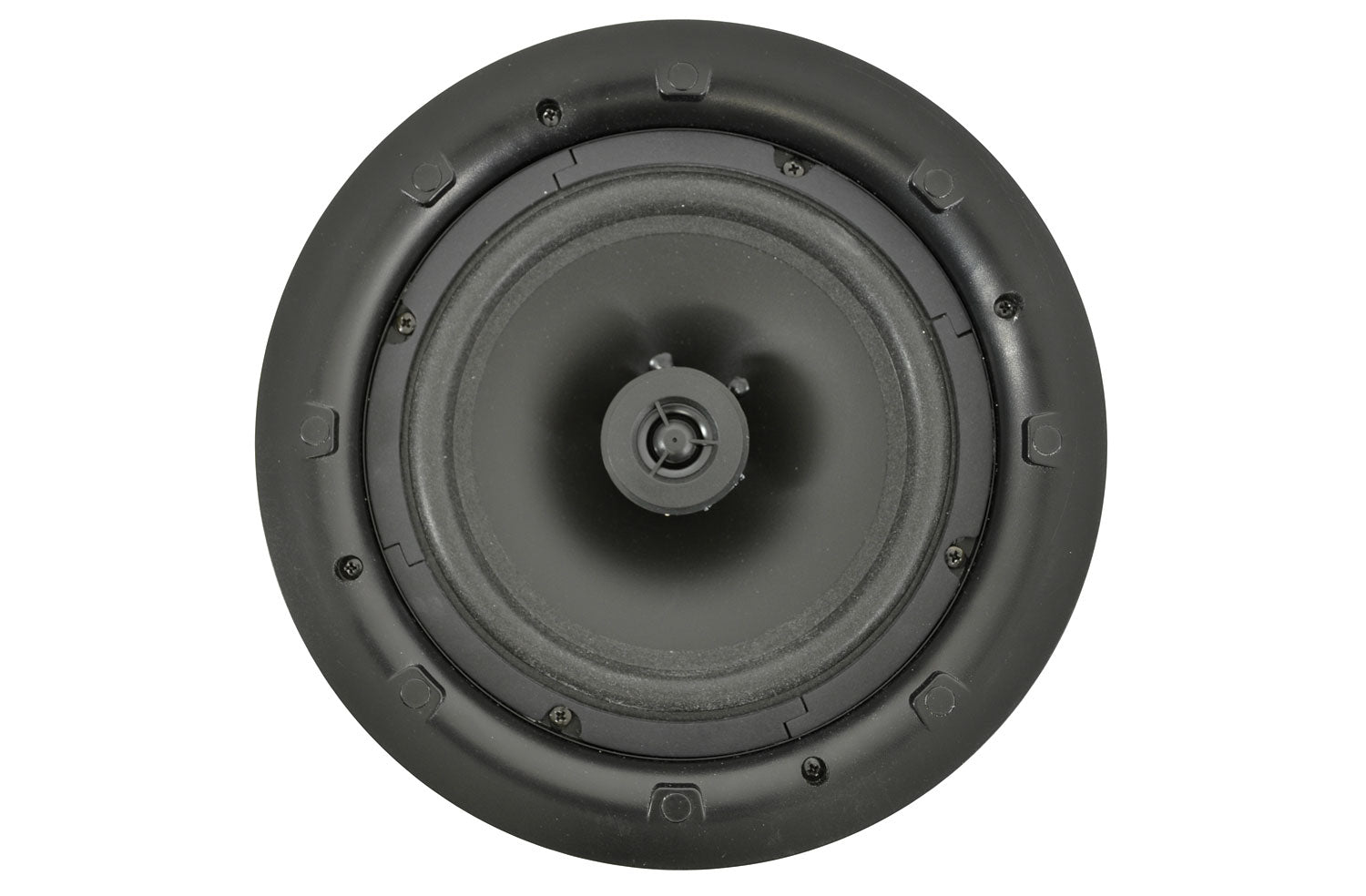

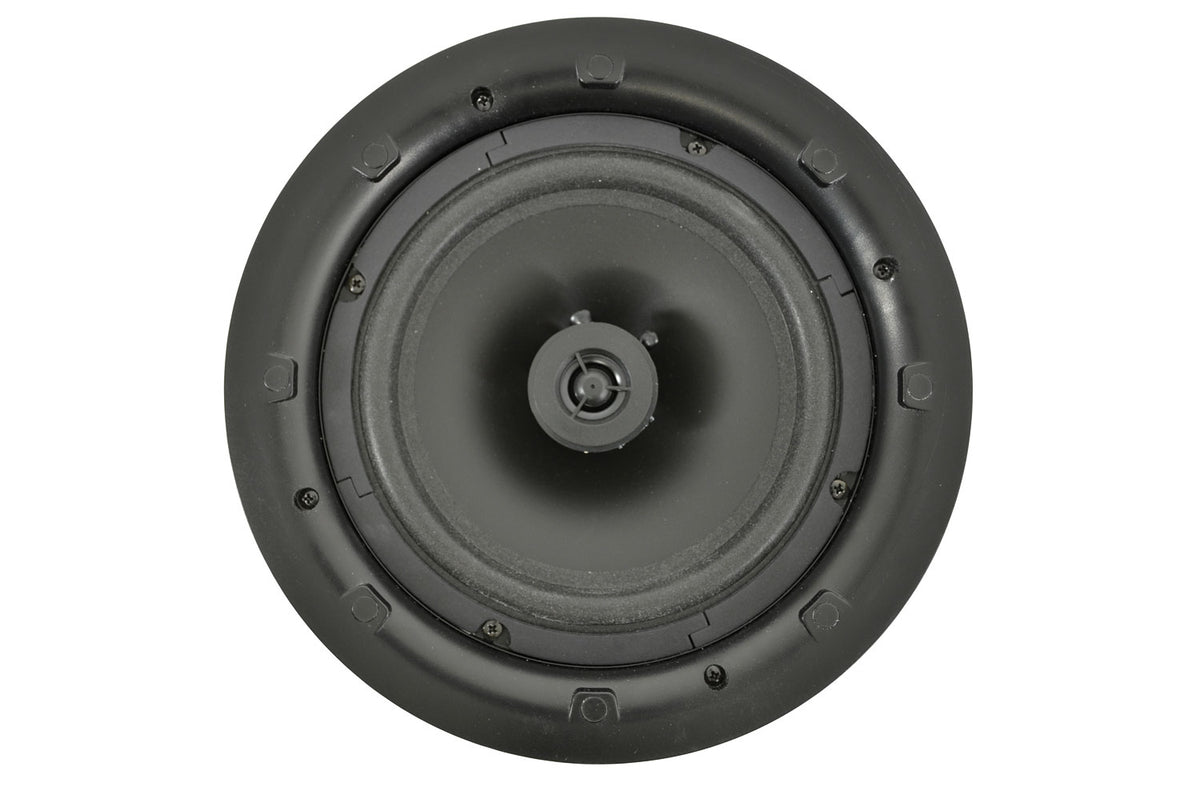

Built around a 200mm woofer and a 44mm concentric directional tweeter, the LP8V is designed to deliver balanced sound across a 60Hz–20kHz frequency range. Its flared baffle helps distribute audio around the listening area, making it well suited to music playback and everyday background sound in shared spaces.
Flexible 100V Line and 8-Ohm Operation

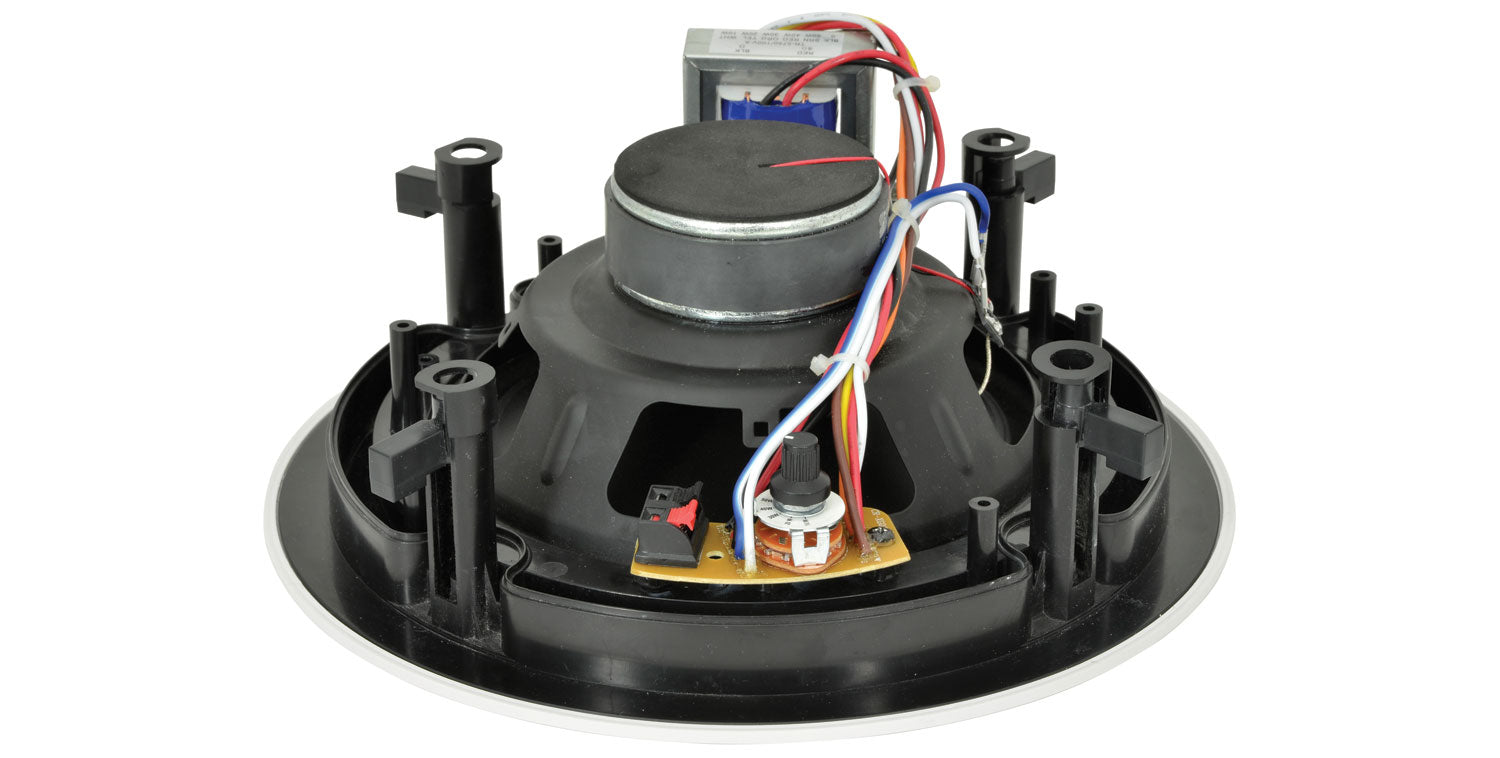

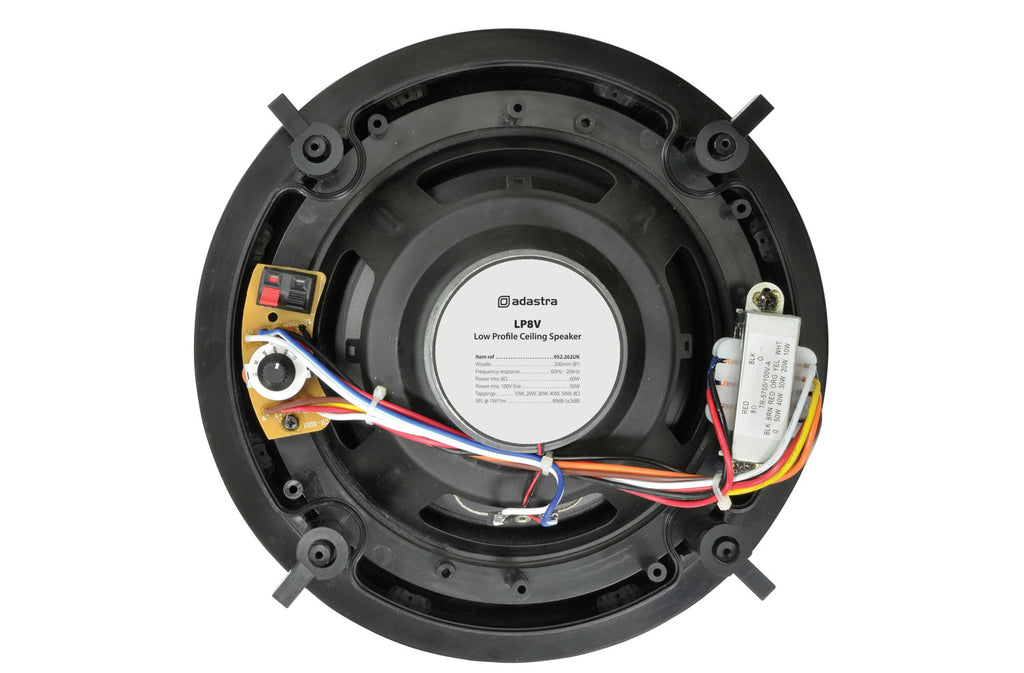

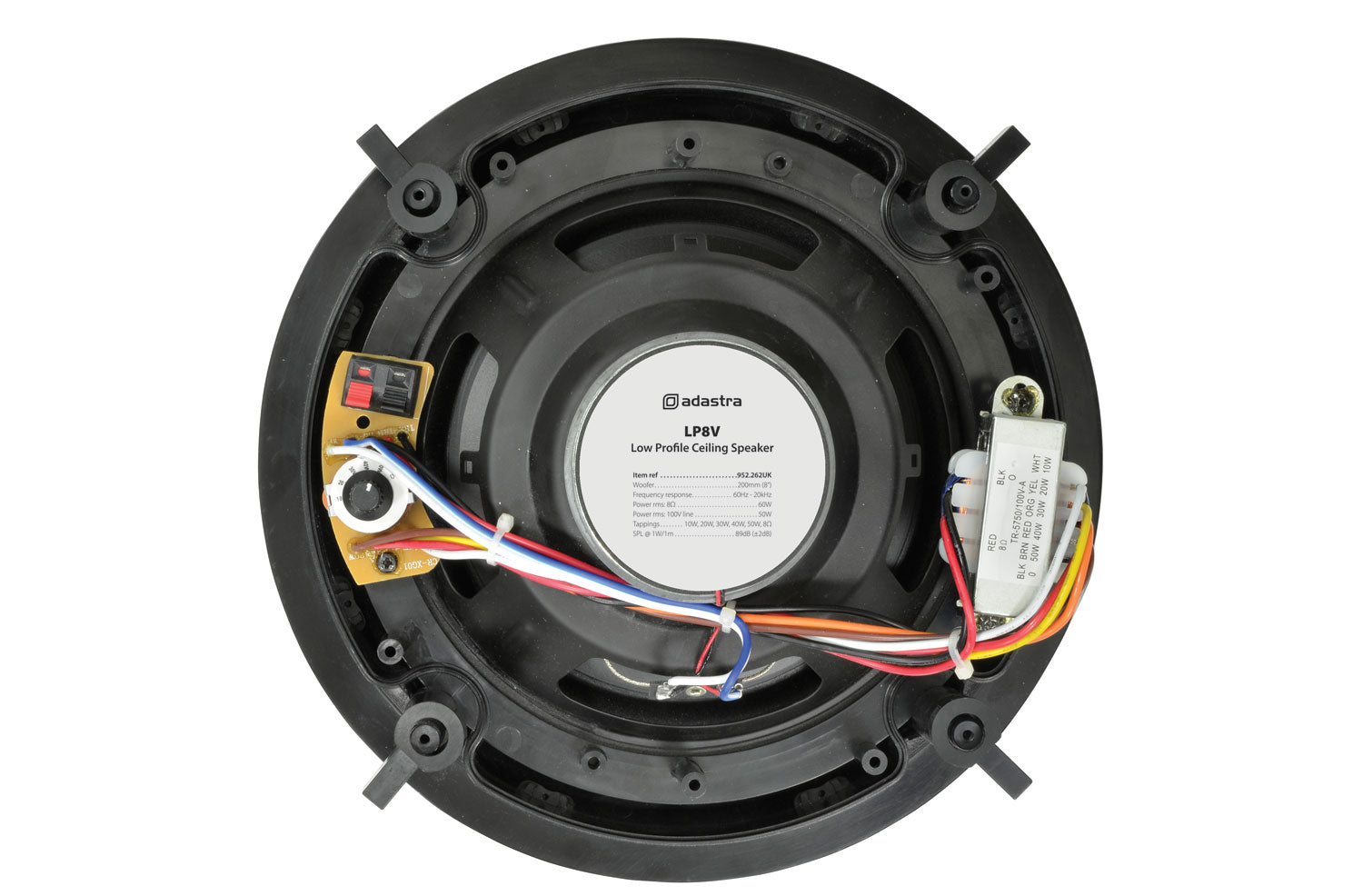

A rotary selector lets you choose between five 100V line power settings of 10W, 20W, 30W, 40W and 50W, or switch to 8-ohm operation. This flexibility makes the LP8V suitable for multi-speaker commercial audio systems as well as compatible conventional amplifier setups. In 8-ohm mode, it handles up to 60W RMS, with a maximum power rating of 120W.
Audio Specifications
Woofer: 165mmØ (6.5")
Tweeter: 38mmØ (1.5")
Frequency Response: 70Hz–20kHz
Maximum Power (8Ω): 100W
Power Handling (RMS, 8Ω): 50W
Power Handling (RMS, 100V Line): 20W
Sensitivity (1W/1m): 87dB (±2dB)
Installation Specifications
Cutout Diameter: 202mm
Mounting Depth: 99mm
100V Line Tappings: 2.5W, 5W, 10W, 15W, 20W and 8Ω
Dimensions & Weight
Dimensions: 102 × 232mmØ
Weight: 1.31kg
Product Information
Product Code: 952.262UK
100V Line Speaker Systems
100V line speaker systems allow multiple speakers to be powered by a single compatible amplifier, providing coverage across several rooms or larger areas. A transformer in the amplifier converts its output to a high-impedance signal, while a corresponding transformer in each speaker draws the required power from the line.
The combined power selected across all speaker tappings should generally remain within approximately 90% of the amplifier's maximum rated output.
Standard 100V Line Set-Up
Example Total Tapped Power: 80W
Speaker transformers may offer multiple power settings to suit different installation requirements. For example, a speaker rated at 10W may also offer 5W and 2.5W tappings.
Remote Volume Controls: Speaker output can be adjusted using remote volume controls, known as attenuators. When calculating amplifier requirements, allow for the attenuators being set to maximum volume.
100V Line Set-Up with Multiple Tappings
Speakers are typically wired in parallel, with individual power tappings selected to keep the combined load within approximately 90% of the amplifier's maximum rated output.
Extended 100V Line Set-Up
If additional speakers are required beyond the recommended capacity of the main amplifier, a compatible slave amplifier can be connected to its line output. The additional speakers are then connected to the slave amplifier to extend the system's coverage.
Example Configuration: A main system of four speakers with an additional four-speaker set powered by a slave amplifier.
