In Stock

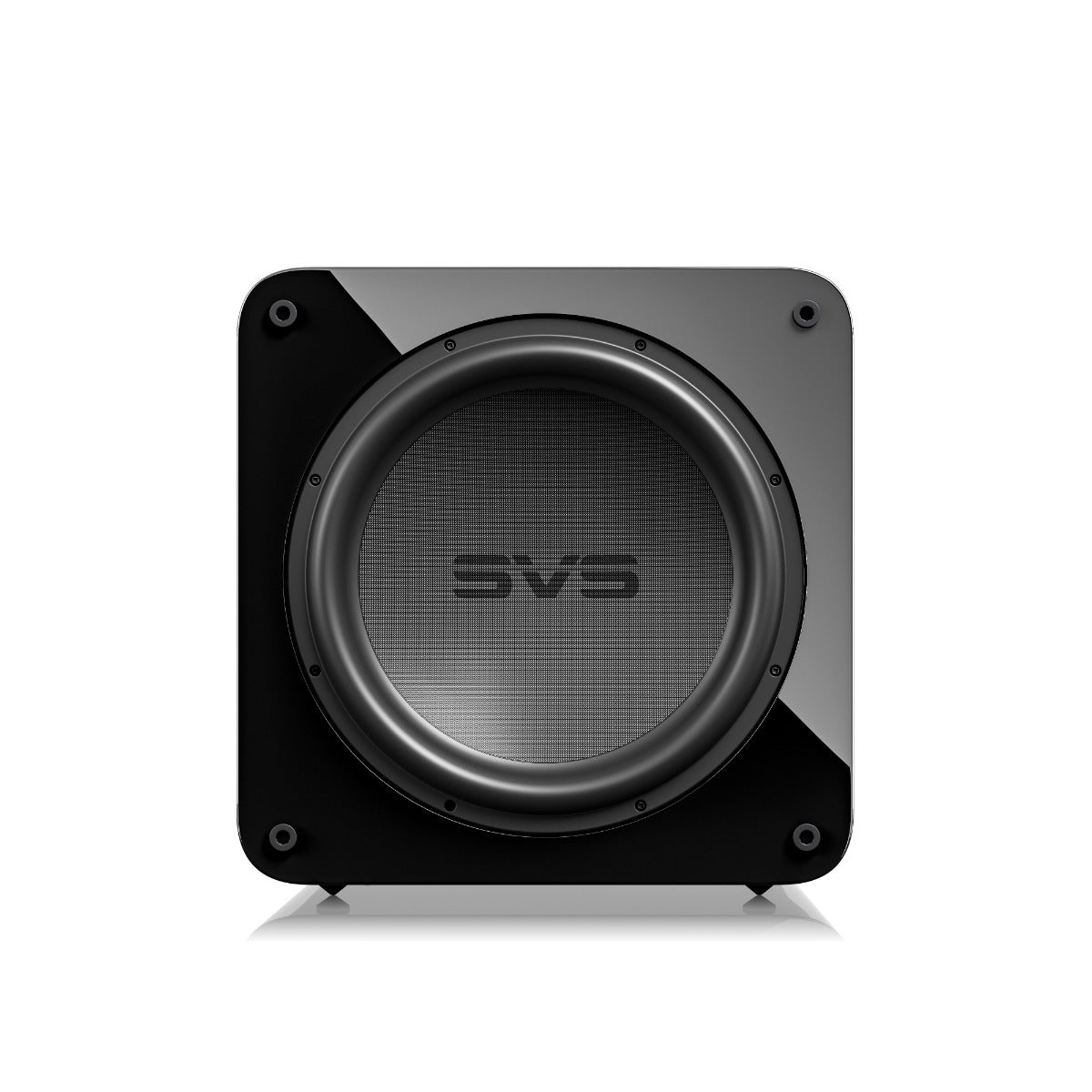

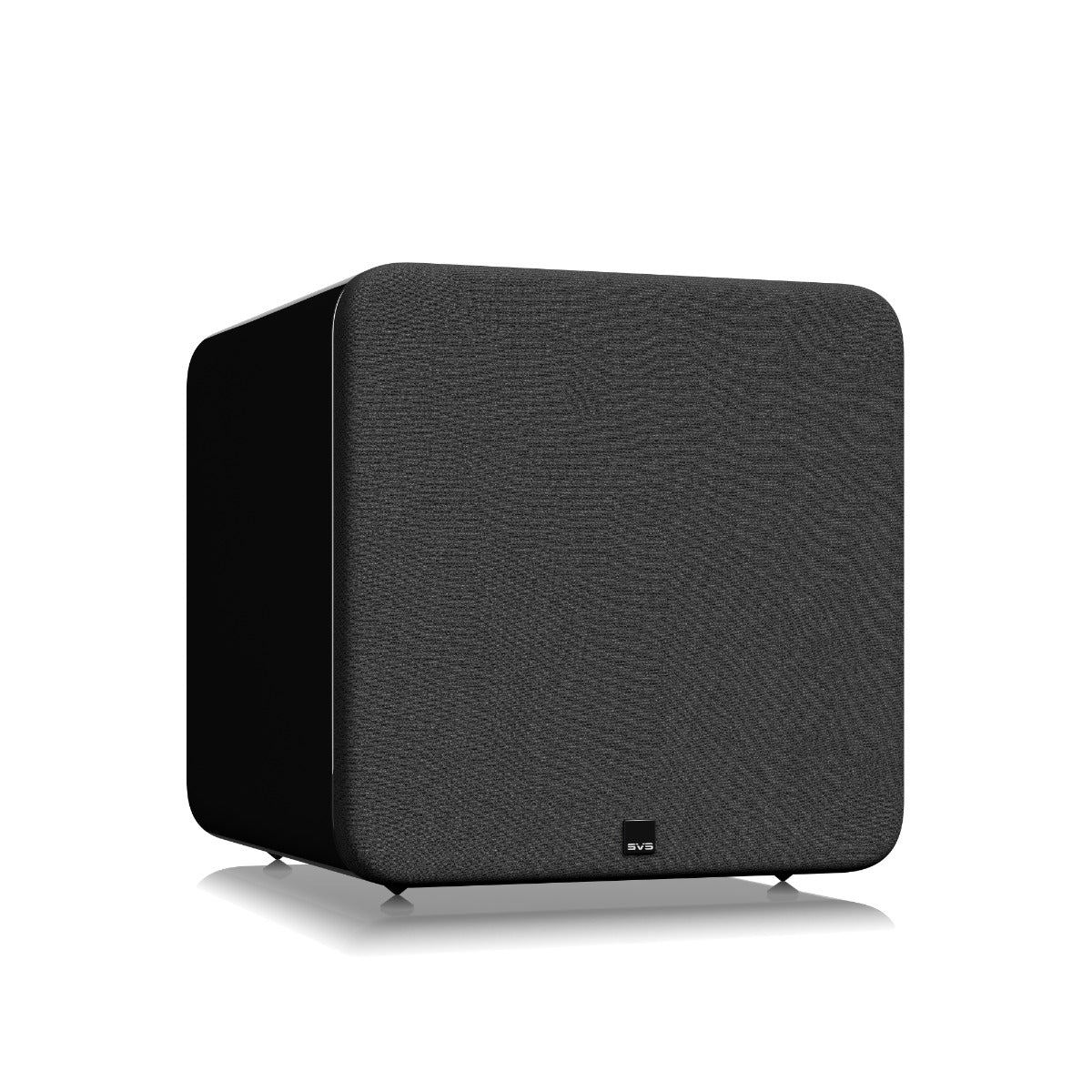

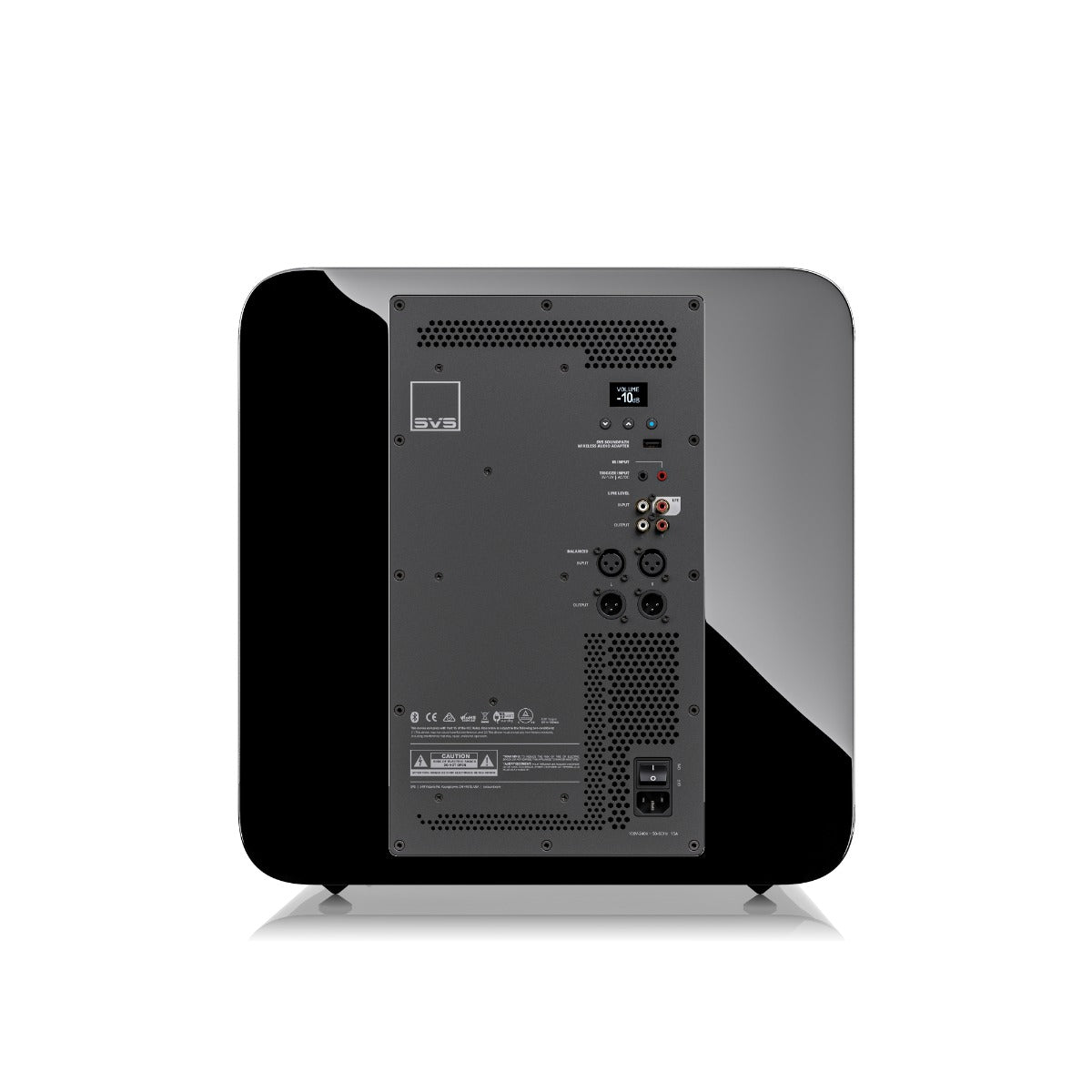

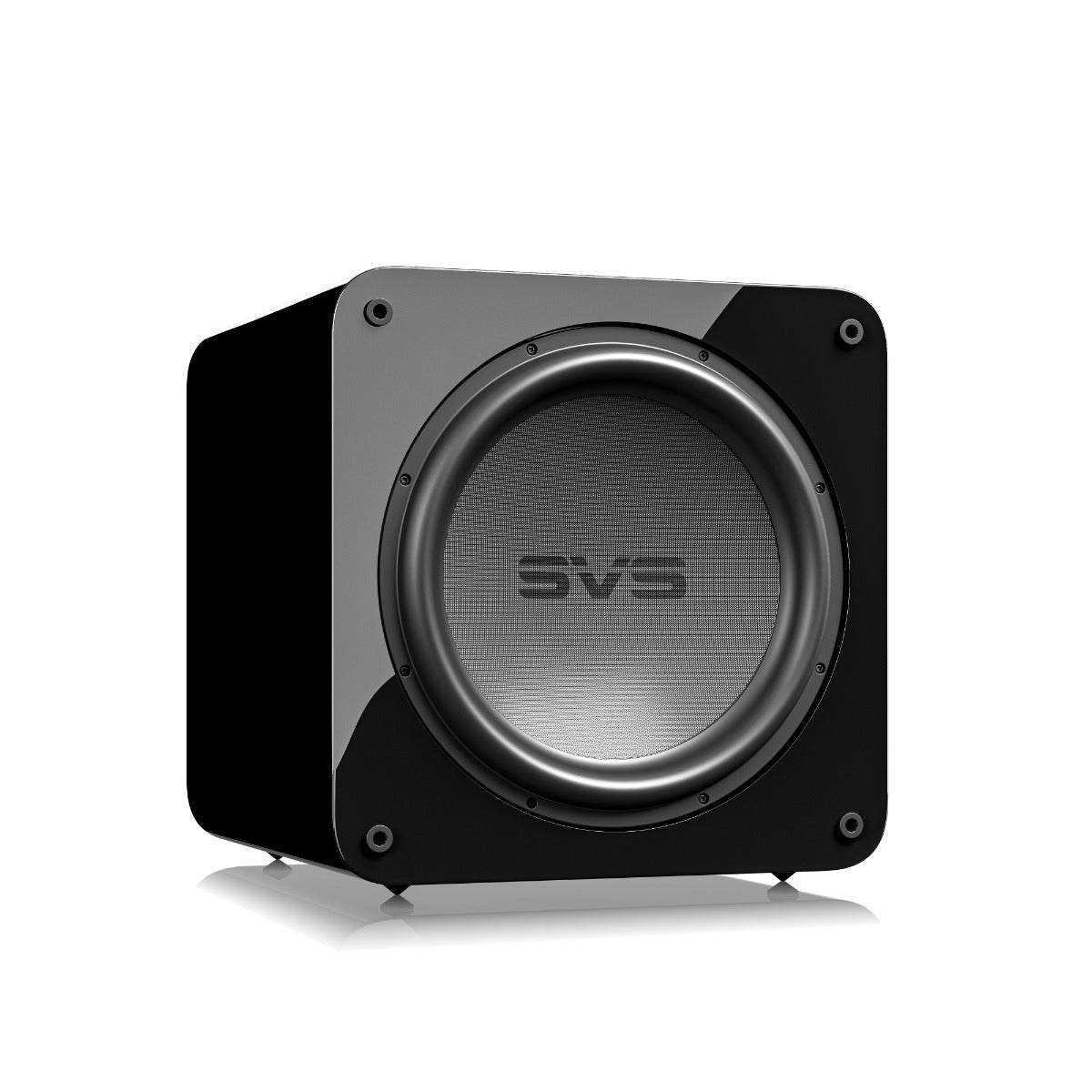

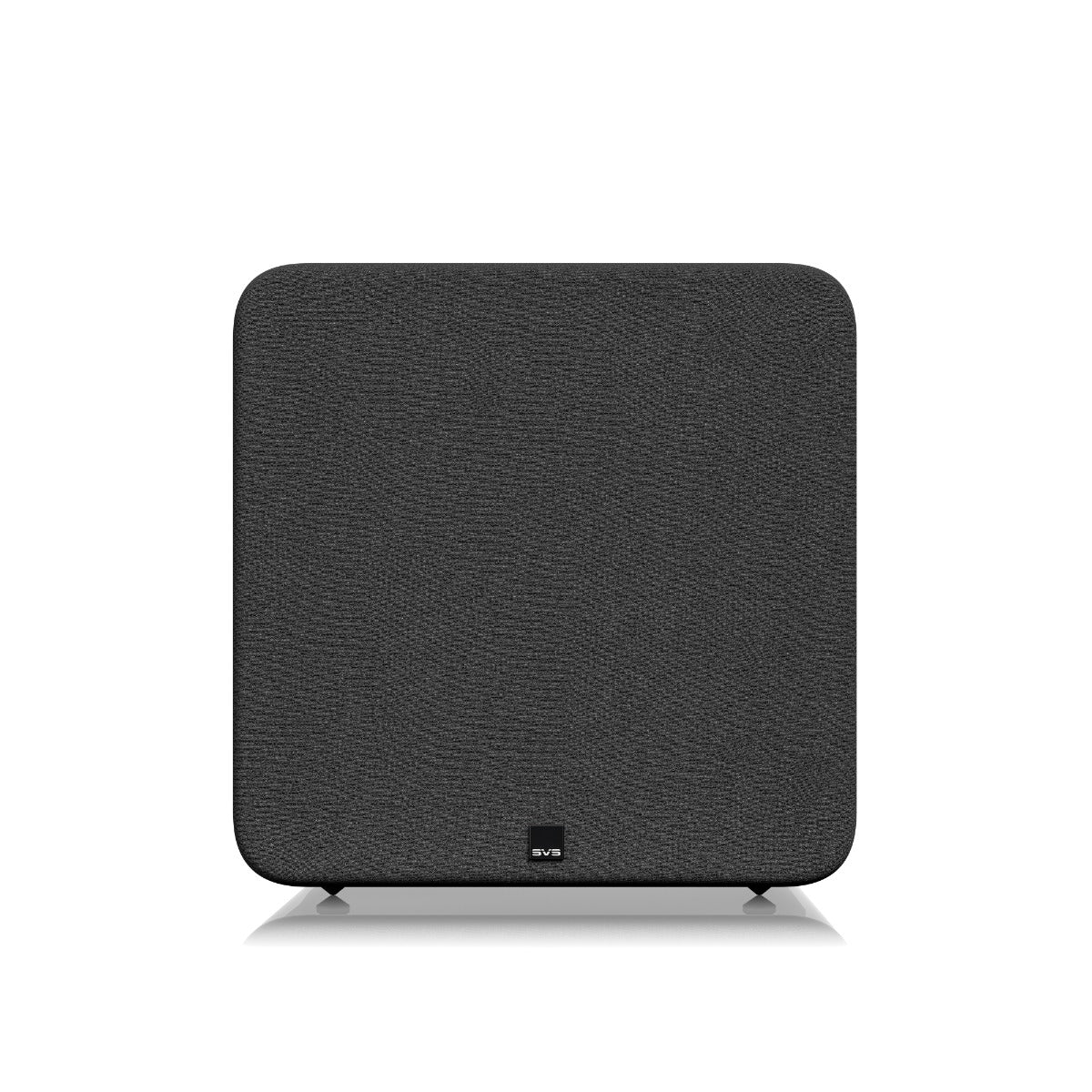

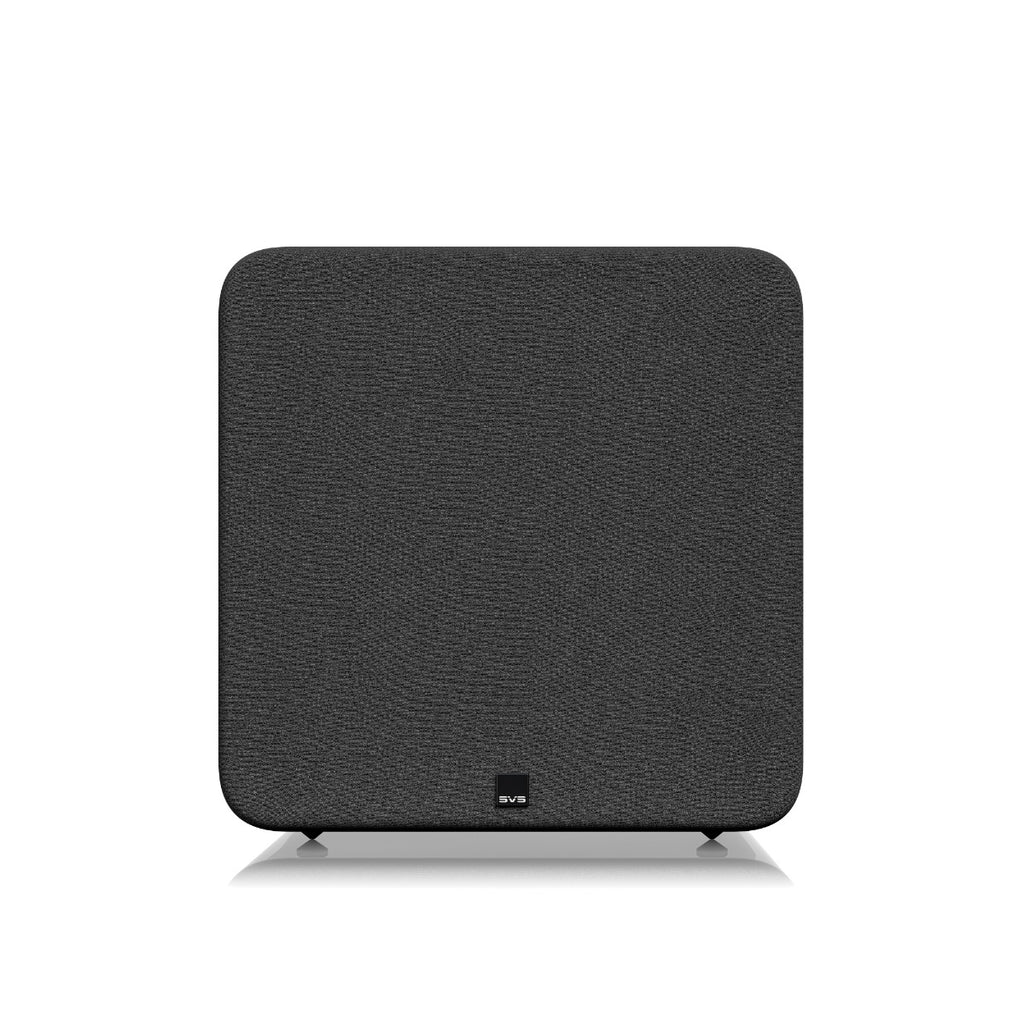

SVS SB-5000 R Subwoofer - Gloss Black
£2,599.00
✓ 5 Year Warranty included
✓ Authorised UK Dealer
Due to the size and weight - this will be delivered on a Pallet Service
Featuring reference SVS subwoofer technology, SB-5000 R|Evolution delivers stunning output with refinement and musicality – a level of subwoofer performance not seen at this price before. Room-pressurizing output below 17Hz with pristine accuracy and stop-on-a-dime control to delight both audiophiles and home theater fans.
Effortless Output from High-Excursion 15-inch SVS Driver
The most formidable, sealed cabinet subwoofer driver in its class features all-new dual edge wound voice coils, suspension, basket, and extreme-excursion surround to achieve visceral sound pressure levels with pinpoint accuracy.
- Lightweight and rigid 15-inch glass fiber composite cone with optimal stiffness-to-mass ratio for maximum efficiency and acoustic linearity
- Two-piece toroidal ferrite electromagnetic motor generates massive force with precise control, remaining authoritative yet detailed and controlled
- Extreme-excursion catenary SBR surround maintains pure, long-throw pistonic driver motion
Unerring Control from Dual Edge Wound Voice Coils
Precision engineered dual edge wound voice coils ensure stable transfer of electro-magnetic current to the 15-inch driver for authoritative output and exacting driver control.
- 6-layer bi-filar dual voice coils conduct the massive power from the dual-mono amplifier to the motor with maximum thermal efficiency, resulting in effortless acoustic output
- Flat edge wound aluminum voice coil wire maximizes density for optimal magnetic field strength and thermal capacity
Dual Mono STA-2000D Amplifier Design with Discrete MOSFET Output
A revolutionary new amplifier platform with technology adapted from the flagship SVS subwoofers. Rated conservatively at 2,000 Watts Continuous, 5,000+ Watts Peak, the innovative design maximizes driver potential with refined behavior and pristine response at any volume.
- High Current Output of Fully Discrete MOSFET transistors with efficiency of Class D Amplifier generates immense sonic force with precise control for outstanding real-world performance at all volumes.
- Each monoblock amp drives one of the dual voice coils within the motor to assert pinpoint control and maximize power fed to the driver
- Eight 60 Amp 200 Volt MOSFET transistors deliver extreme high current for reference-level output with maximum efficiency
Extreme Subwoofer Intelligence - 295 MHz Analog Devices DSP
Orchestrating the cutting-edge amplifier, motor, and driver ecosystem is the most sophisticated DSP ever deployed in a home audio subwoofer.
- Accurately shapes in-room frequency response with absolute precision for faithful signal reproduction
- Monitors every function of the amplifier to stabilize AC voltage delivery to the power supply to maintain consistent peak output
- Multi-point thermal, voltage, and current monitoring systems ensures maximum output and efficiency
- Advanced digital audio processing and DACs (Digital-to-Analog Converters) with 120 dB Signal-to-Noise Ratio provide greater headroom, lower noise, and pristine fidelity
Performance Enhancing Switch Mode Power Supply
Regardless of the power coming out of your household circuit, the SB-5000 R|Evolution always maintains peak performance and remains impervious to voltage fluctuations.
- Onboard AC line conditioner filters and stabilizes incoming voltage, corrects waveform distortions, and eliminates electromagnetic and radio interferences to optimize signal quality and audio performance
- Ensures clean and consistent 160V rail voltage and optimal power delivery from a standard 15-amp home circuit
- Power-Factor-Correction (PFC) time aligns the AC voltage to the AC current resulting in less heat, greater efficiency, reliable peak power output, and the ability to maintain rated power over a wide-range of voltages
- FEA optimized convection cooling system has no exterior heatsinks, an extraordinary feat for such a powerful amplifier
SVS Subwoofer Smartphone Control App
Convenient subwoofer tuning and control from the comfort of your favorite seat. Works via Bluetooth with Apple iOS, Google Android, and Amazon Fire platforms.
- Controls for volume, low pass filter, phase, polarity, six parametric equalizers, room gain compensation, tuning modes, power management settings, and more.
- Includes three convenient memory presets for fast and easy system adjustments to match your listening preferences – music, movies, night mode, and more
- Amplifier Rear Panel OLED and control interface provide fast and direct control of the most important features and includes a convenient “Display Flip” function.
SVS Subwoofer Auto EQ Room Correction
Achieves pristine fidelity by resolving acoustic issues caused by your room in a few easy steps.
- Automatically tunes subwoofer output using your smartphone microphone or an external microphone and the SVS subwoofer app
- Applies equalization, capitalizes on available room gain, and shapes in-room frequency response at the main listening positions for optimal in-room performance
- Will be available soon via an over-the-air SVS Subwoofer Control App update
Acoustically Inert, Rigidly Braced Sealed Box Cabinet Design
Sealed cabinet design results in tighter, more musical bass and makes it significantly more compact than ported box subwoofers with similar specs.
- Double-thick 2-inch MDF front baffle and rigid internal bracing to support the massive drive unit and to ensure an acoustically inert environment.
- Highly reinforced internal design and acoustic insulation eliminates all coloration or resonance from the cabinet, even when the deepest low frequencies are played at reference volume.
- Protective non-resonant extra-thick ABS grille frame with fabric mesh cover shields driver to prevent damage while ensuring longevity.
- Custom elastomer feet reduce noise artifacts within a room.
Finish Options:
Piano Gloss Black and Black Ash options
Driver:
Front Firing 15-inch high-excursion driver
Amplifier Interface:
Rear Panel OLED and control interface for fast access to important features
Includes “Display Flip” function for convenience
Grille:
Protective non-resonant extra-thick ABS grille frame
Fabric mesh cover shields driver while preserving longevity
Cabinet:
Robust MDF (Medium Density Fiberboard) construction
Internal bracing ensures resonance-free performance at high output
Feet:
Screw-in Iso-elastomer feet reduce noise and improve stability
Dimensions:
With grille: 18.3” (465mm) H x 17.8” (453mm) W x 19.5” (495mm) D
Without grille: 18.3” (465mm) H x 17.8” (453mm) W x 18.4” (468mm) D
Shipped Dimensions: 23.2” (588mm) H x 23.5” (598mm) W x 28.0” (712mm) D
Weight:
Unboxed: 102.1 lbs (46.3 kg)
Shipped: 120.7 lbs (54.8 kg)
Driver Specifications:
Proprietary 15-inch long-throw driver with tuned overhung motor
46.3 lb (21 kg) woofer, 38.4 lb (17.46 kg) motor
46.32mm Xmax, 77.44mm Xmech excursion
3” voice coil with 6-layer bifilar flat edge wound aluminum wire
Dual voice coil design for maximum acoustic output
Glass-fiber composite former/bobbing
Oversized Y30 ferrite magnet motor for dynamic bass
Copper shorting sleeve for reduced distortion
Dual 24-strand silver-plated copper-alloy and Nomex leads
Precision machined top-plate and oversized T-yoke (zinc-plated low carbon 1010 steel)
Dual Nomex-composite linear suspension spiders
Injection-molded NBR rubber surround
Glass-fiber laminated dustcap and vented cone
High-density 15” powder-coated cast aluminum basket
Nickel-plated spring terminals
Amplifier Specifications:
2,000-watt RMS Class D amplifier, 5,000+ watts peak
295MHz Analog Devices DSP with 56-bit filtering
Smart DSP power management and real-time monitoring
120 dB SNR DACs for superior audio fidelity
Dual-mono Class D amps using eight 60A 200V MOSFETs
Advanced SMPS with 100V–240V full range input and PFC
Internal AC line conditioner for clean, stable voltage
Convective cooling design—no external heatsinks
DSP limiter settings for room control and optimized bass
RCA Input: 10kohm, up to 4Vrms
XLR Input: 14kohm, up to 4Vrms / +14dBu
USB power output for SoundPath Wireless Adapter
App control with Auto/On/Trigger (3.5mm input)
3.5mm IR input
Green standby power mode: 0.5 watts
RoHS compliant, lead-free, globally certified
SVS App Features:
Available for iOS, Android, and Amazon Fire
Full subwoofer control with real-time bi-directional feedback
Adjust volume, low pass filter, phase, polarity, PEQ, room gain, tuning modes, and more
Save 3 memory presets for fast switching
Auto Room EQ feature (Coming Soon)
Step-by-step tutorial for all functions
Included Accessories:
ABS grille with fabric mesh cover
Iso-elastomer feet
Heavy-duty 6’ power cord
Quick Start Guide
