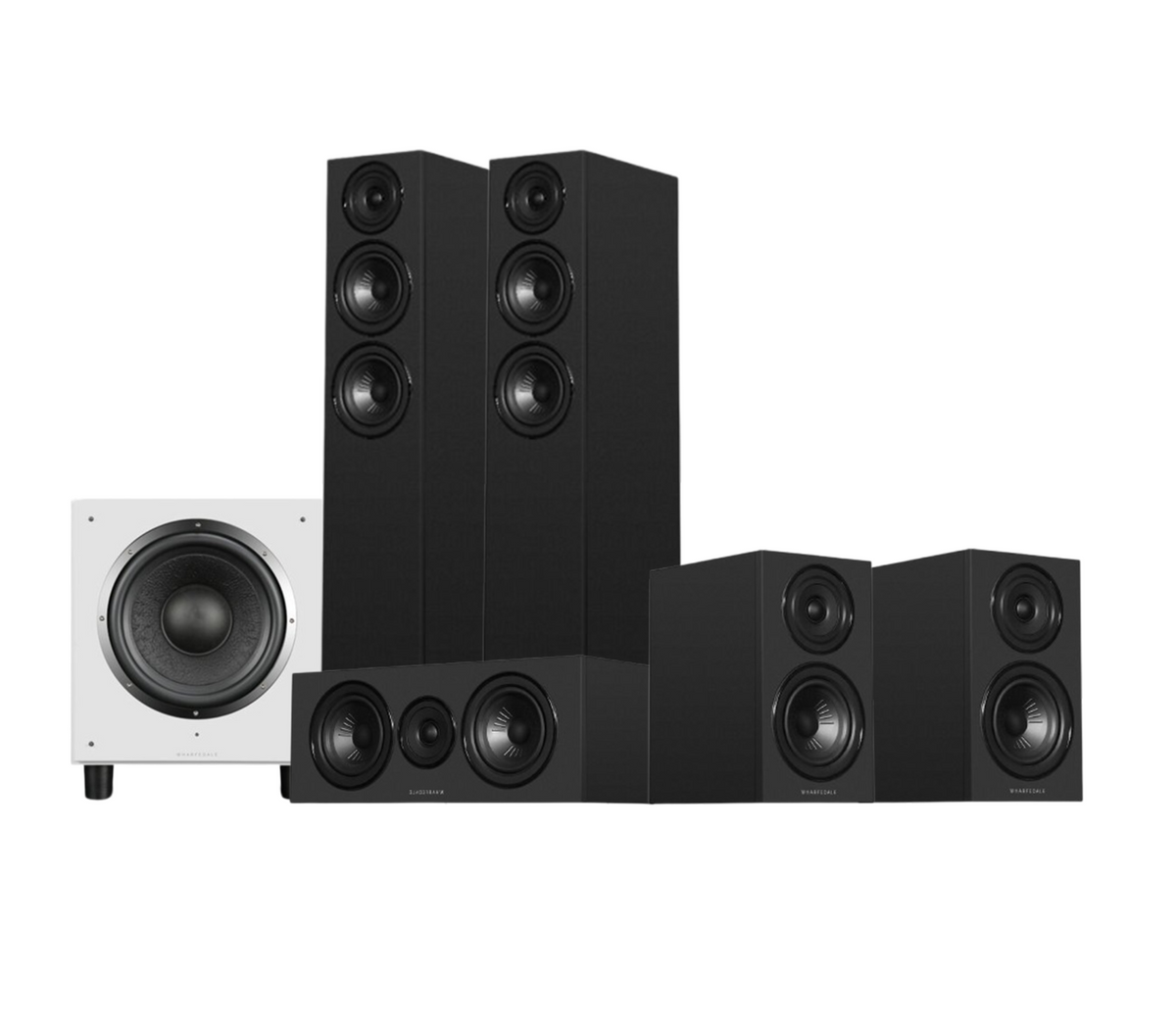

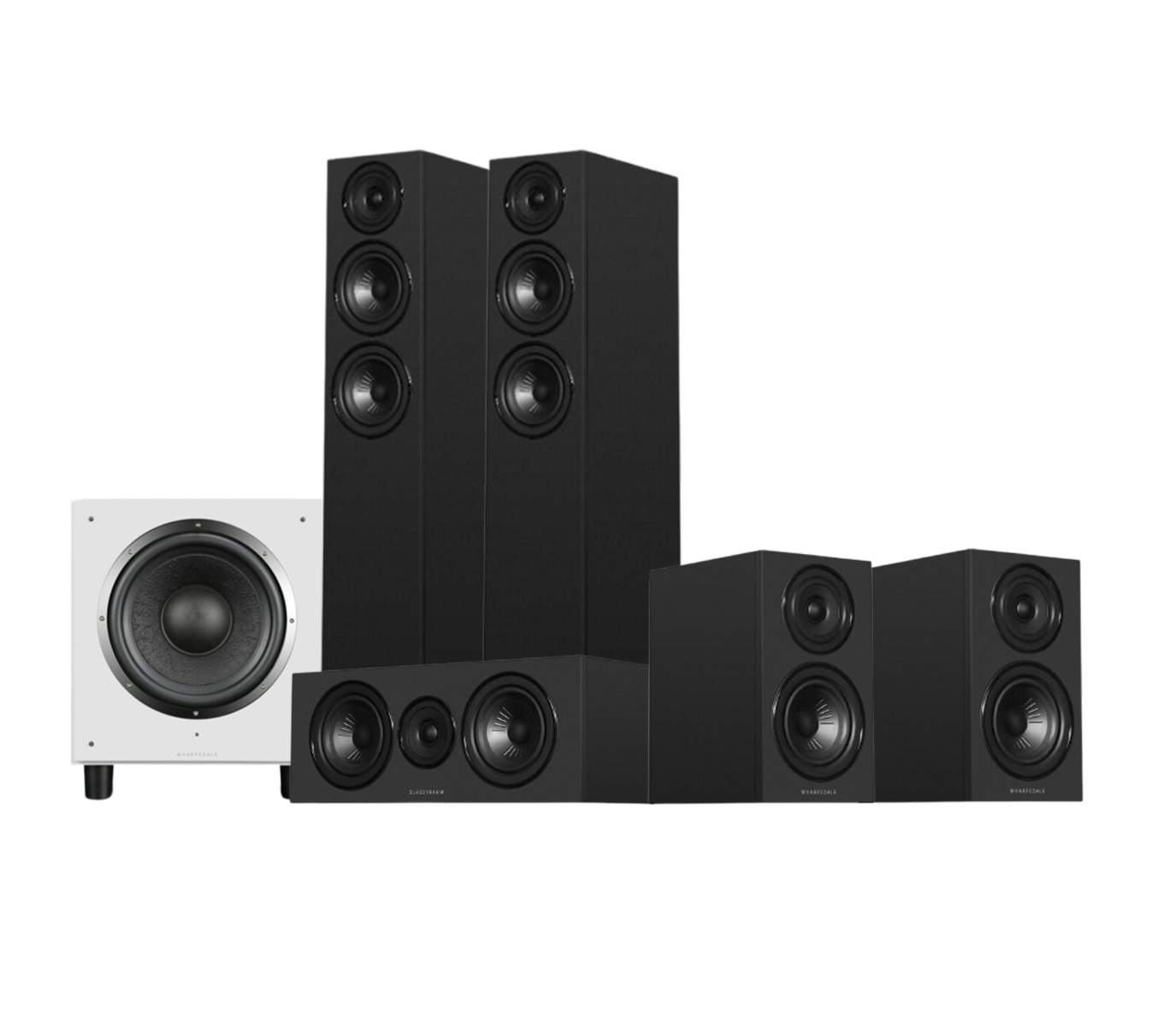

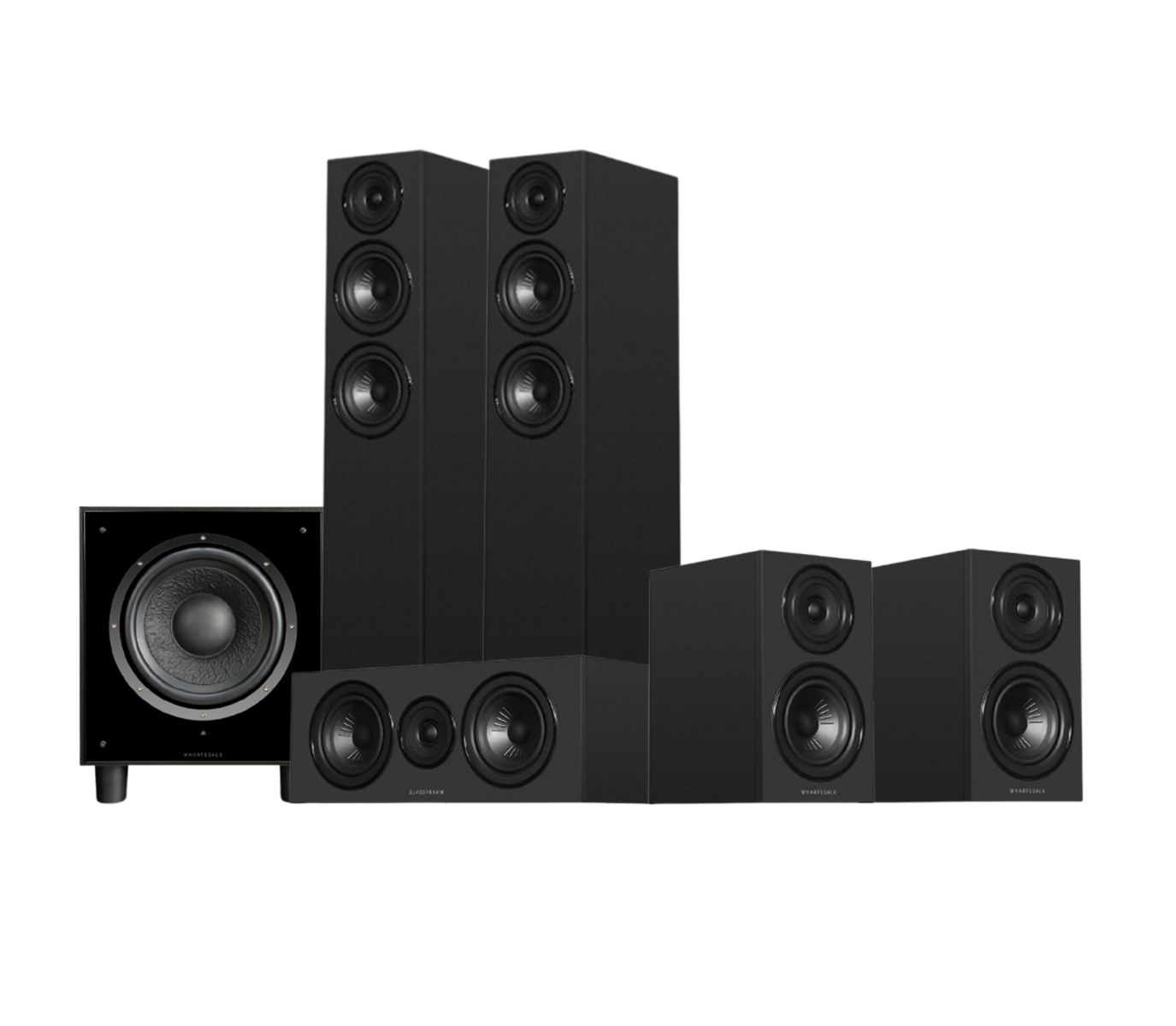

Wharfedale Diamond 12.3i HCP 5.1 Home Cinema Pack - Black with SW-10 Subwoofer
£1,299.00
✓ 3 Year Warranty included
✓ Authorised UK Dealer
The Wharfedale Diamond 12.3i 5.1 Home Cinema Pack delivers a room-filling home cinema experience with floorstanding front speakers, dedicated surround speakers, a matching centre speaker and the SW-10 subwoofer. Designed for films, gaming and music, it combines detailed surround sound, natural dialogue and deep, controlled bass in one complete 5.1 speaker package.

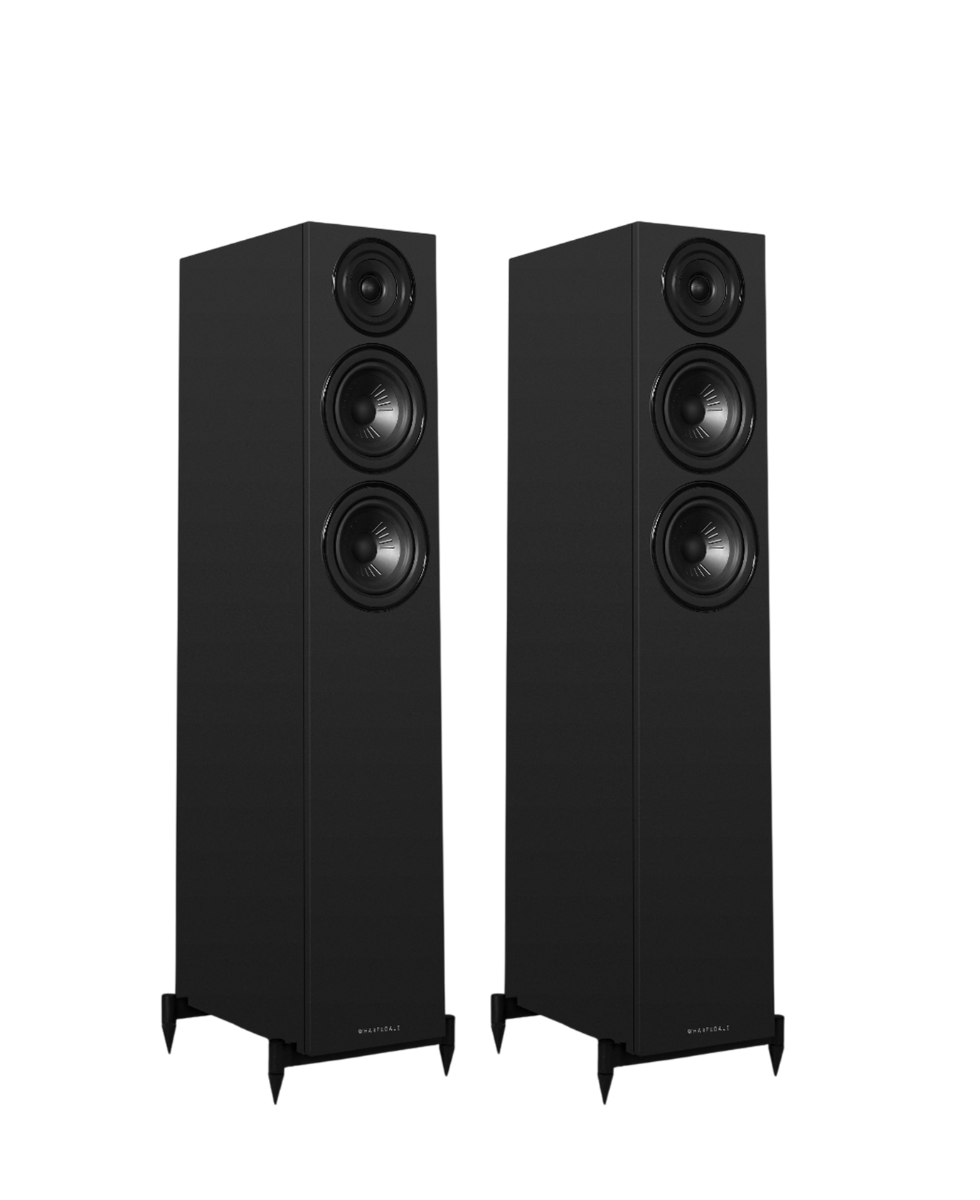

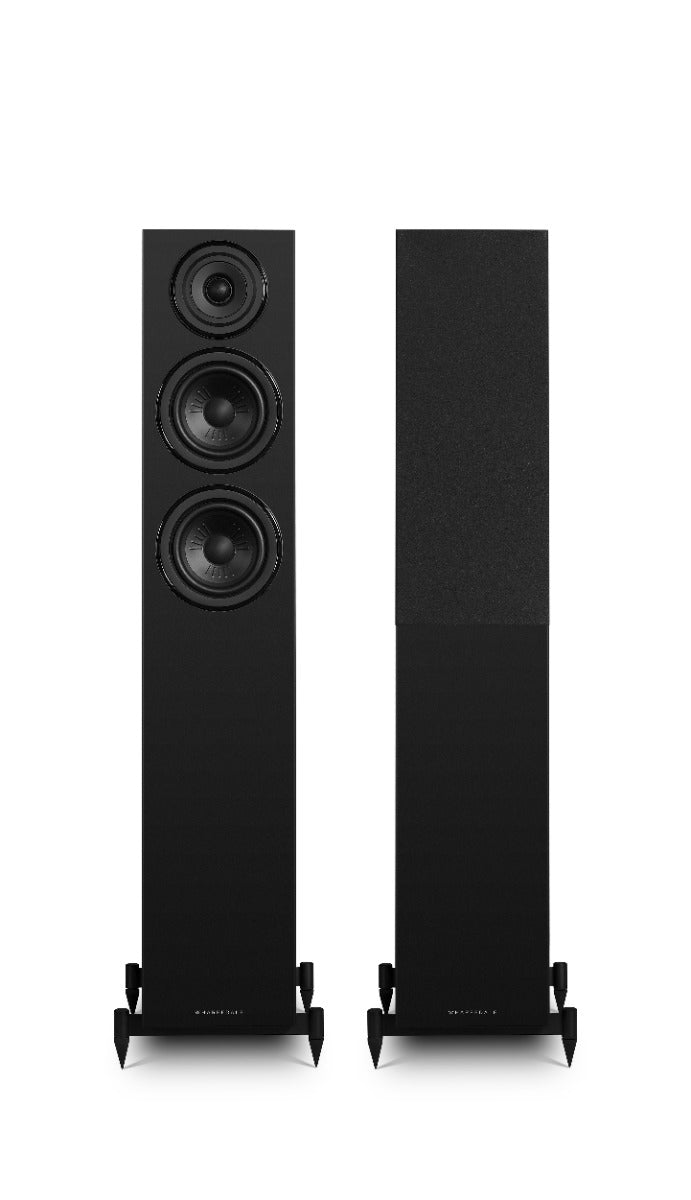

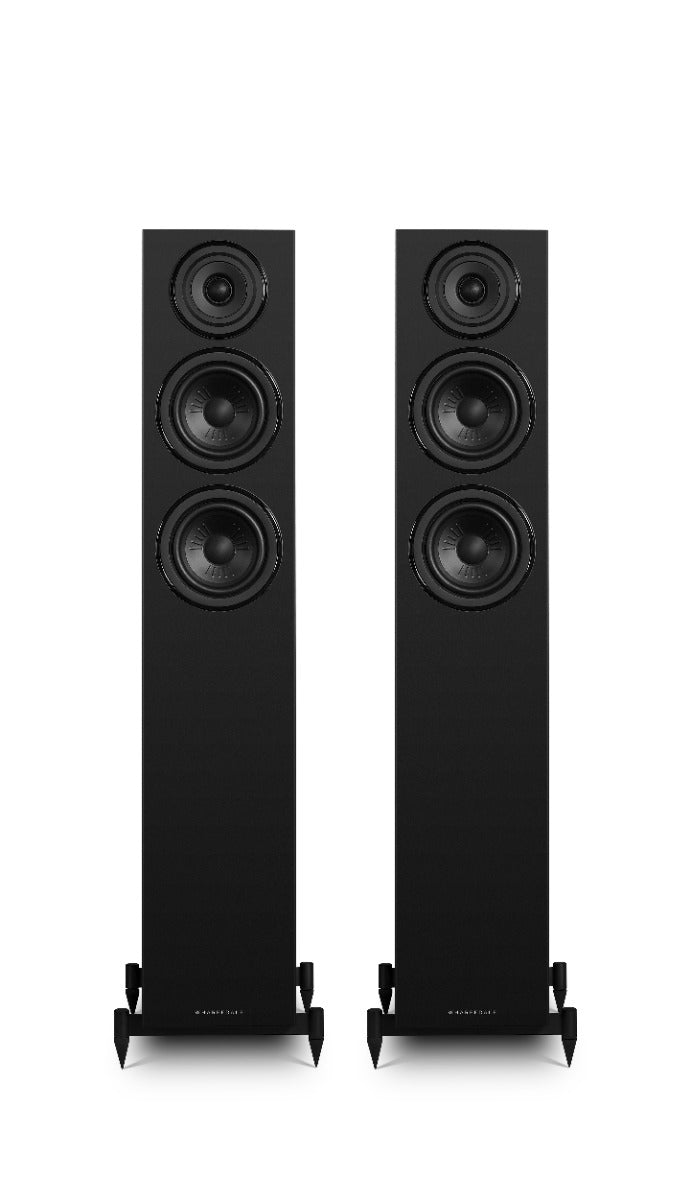

Wharfedale Diamond 12.3i Floorstanding Speakers
Powerful Front Speakers With Room-Filling Sound
The Wharfedale Diamond 12.3i Floorstanding Speakers provide the scale and authority needed for an immersive home cinema. Delivering a wide soundstage, natural vocals and controlled bass, they bring films, music and gaming to life while maintaining the balanced, detailed character that defines the Diamond Series.

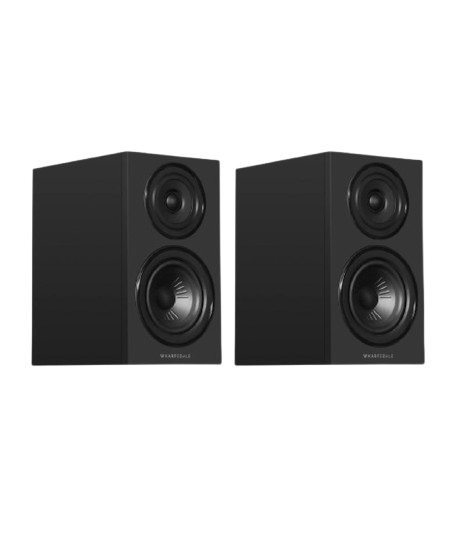

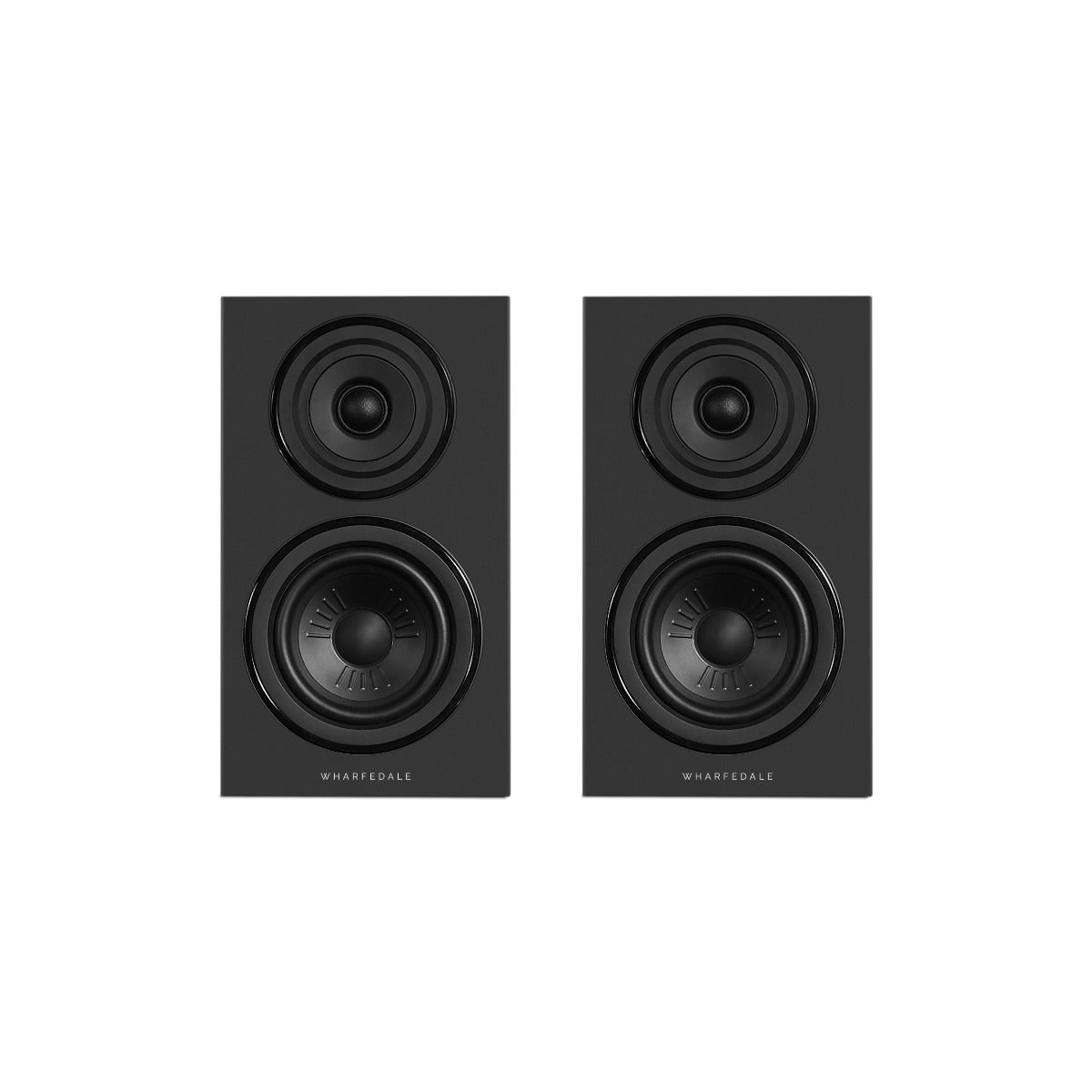

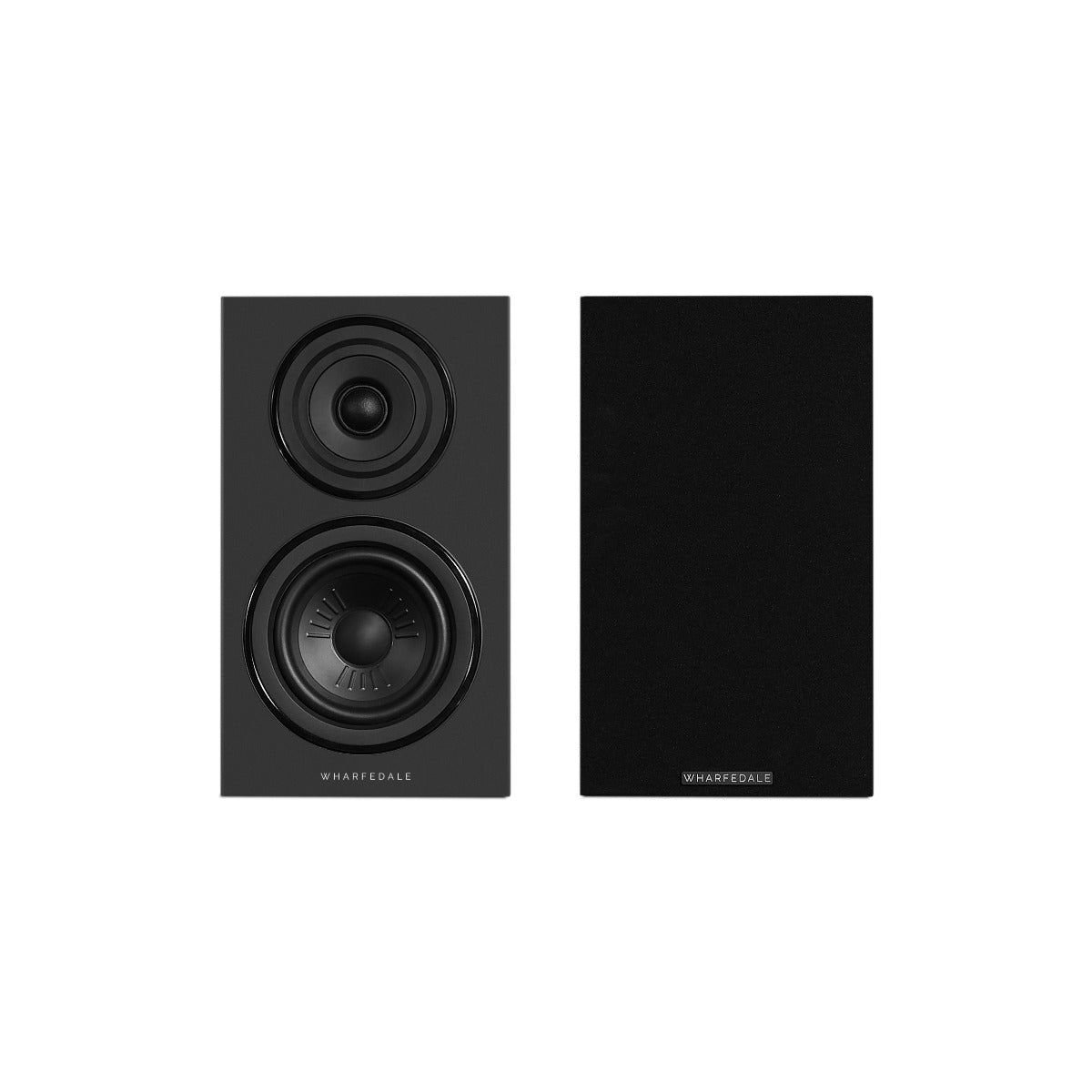

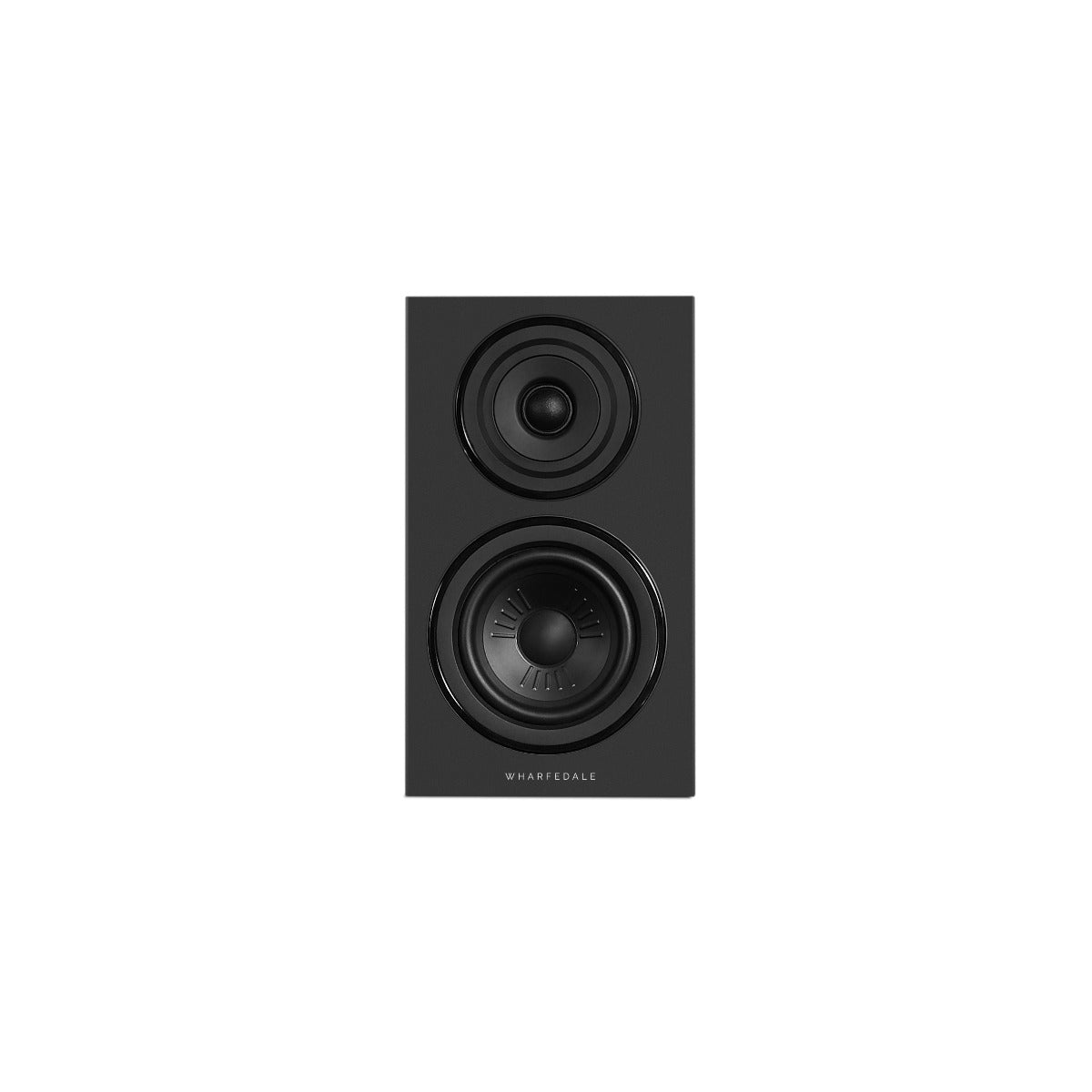

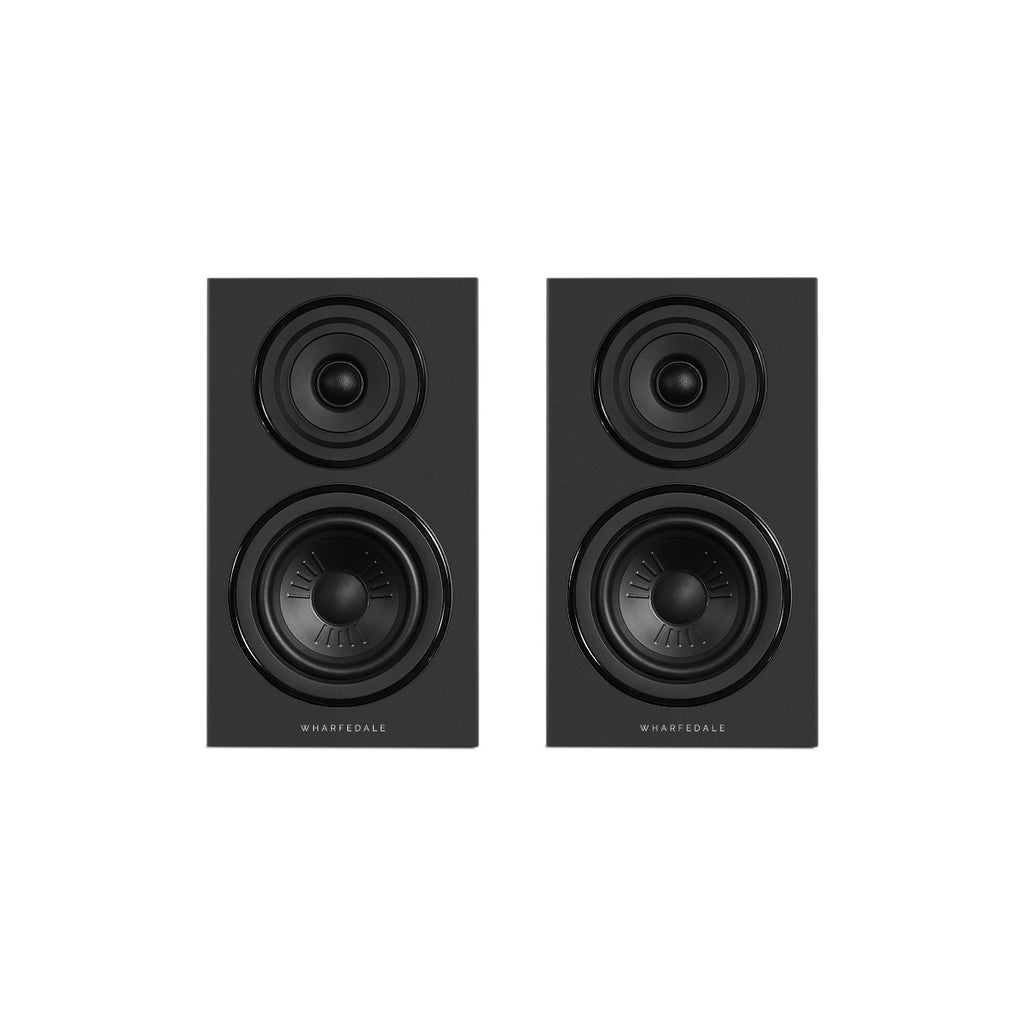

Wharfedale Diamond 12.1i Bookshelf Speakers
Compact Surround Speakers With Precise Effects
The Wharfedale Diamond 12.1i Bookshelf Speakers create convincing rear-channel effects that add depth and realism to every soundtrack. Their compact design allows flexible placement while delivering clear, detailed surround audio that integrates seamlessly with the front speakers.

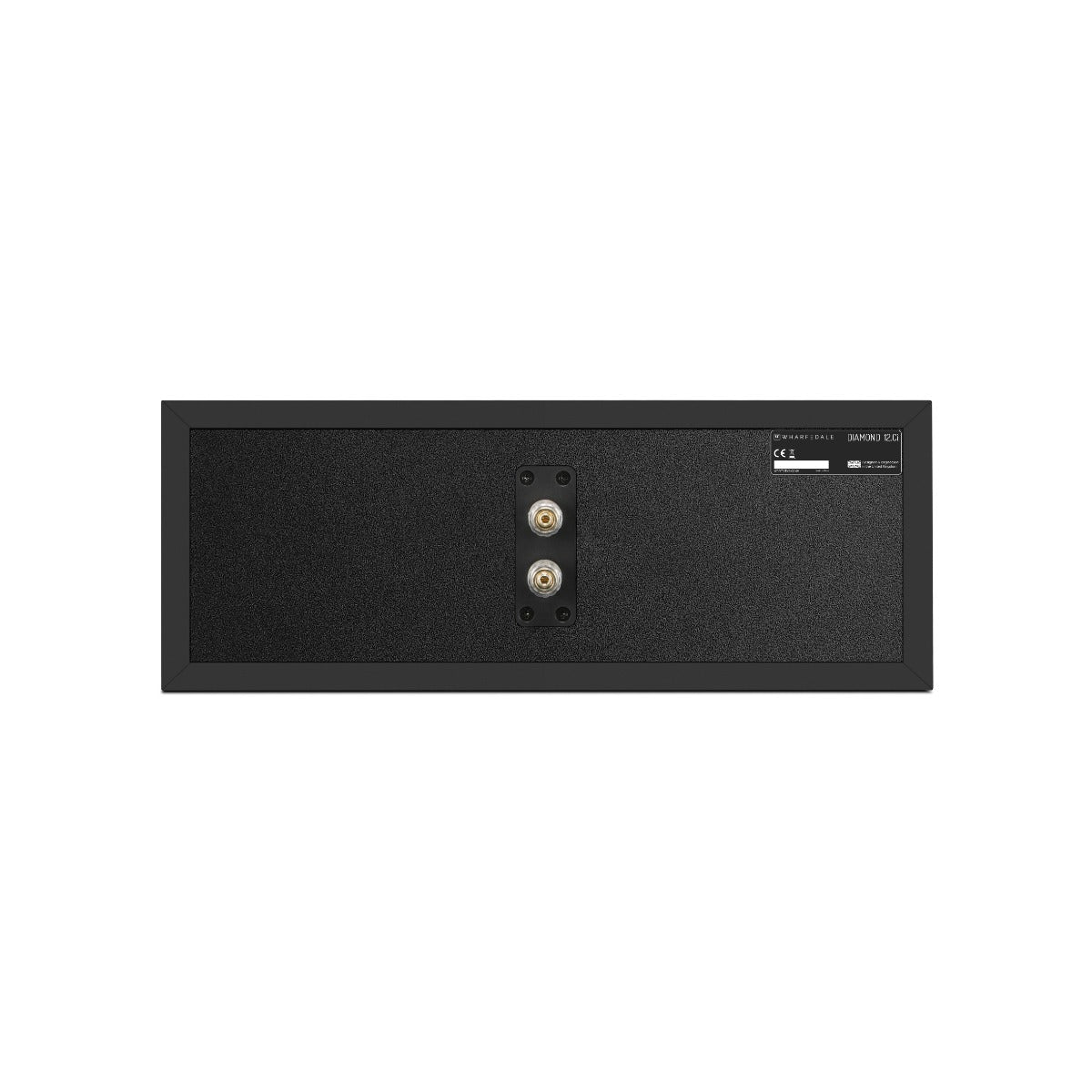

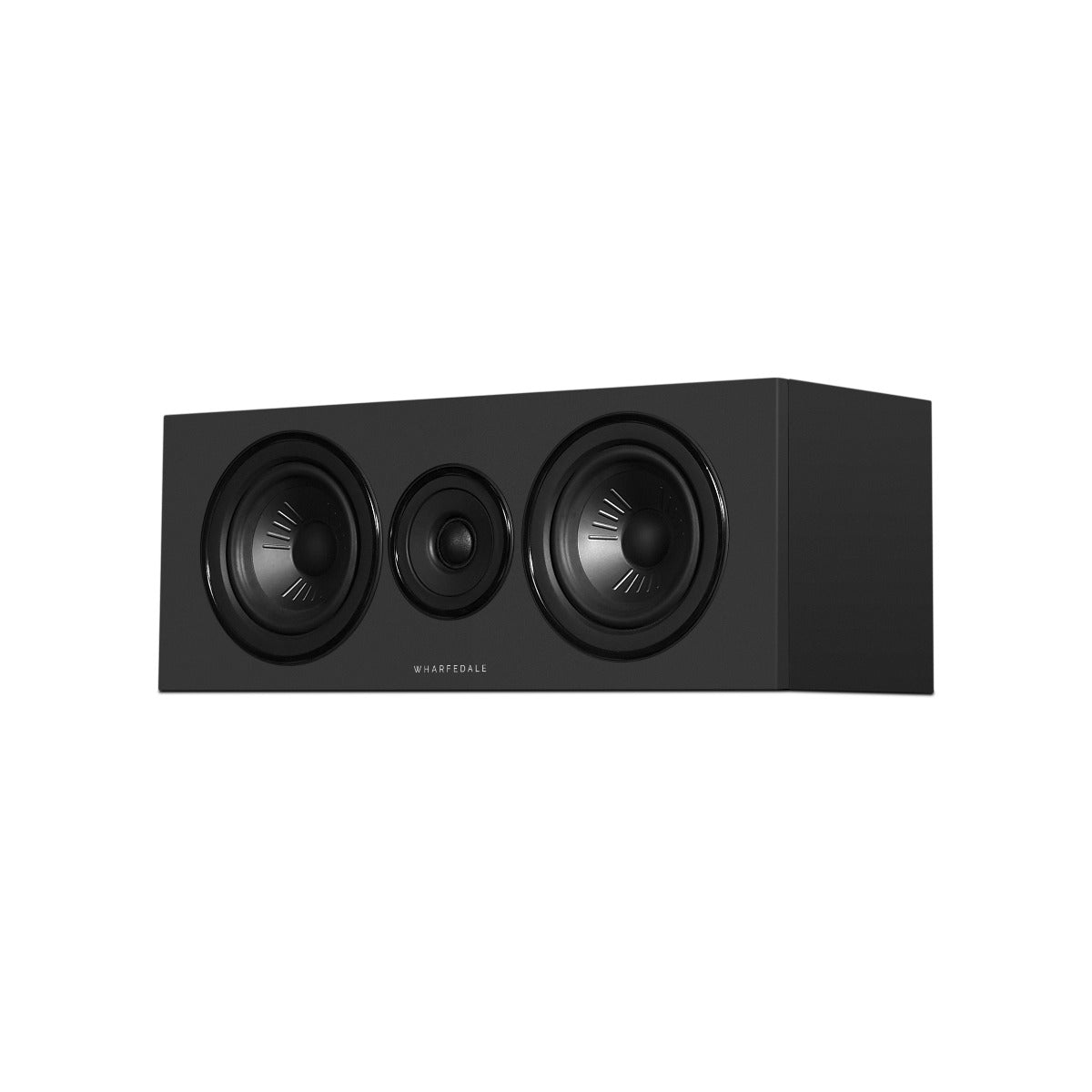

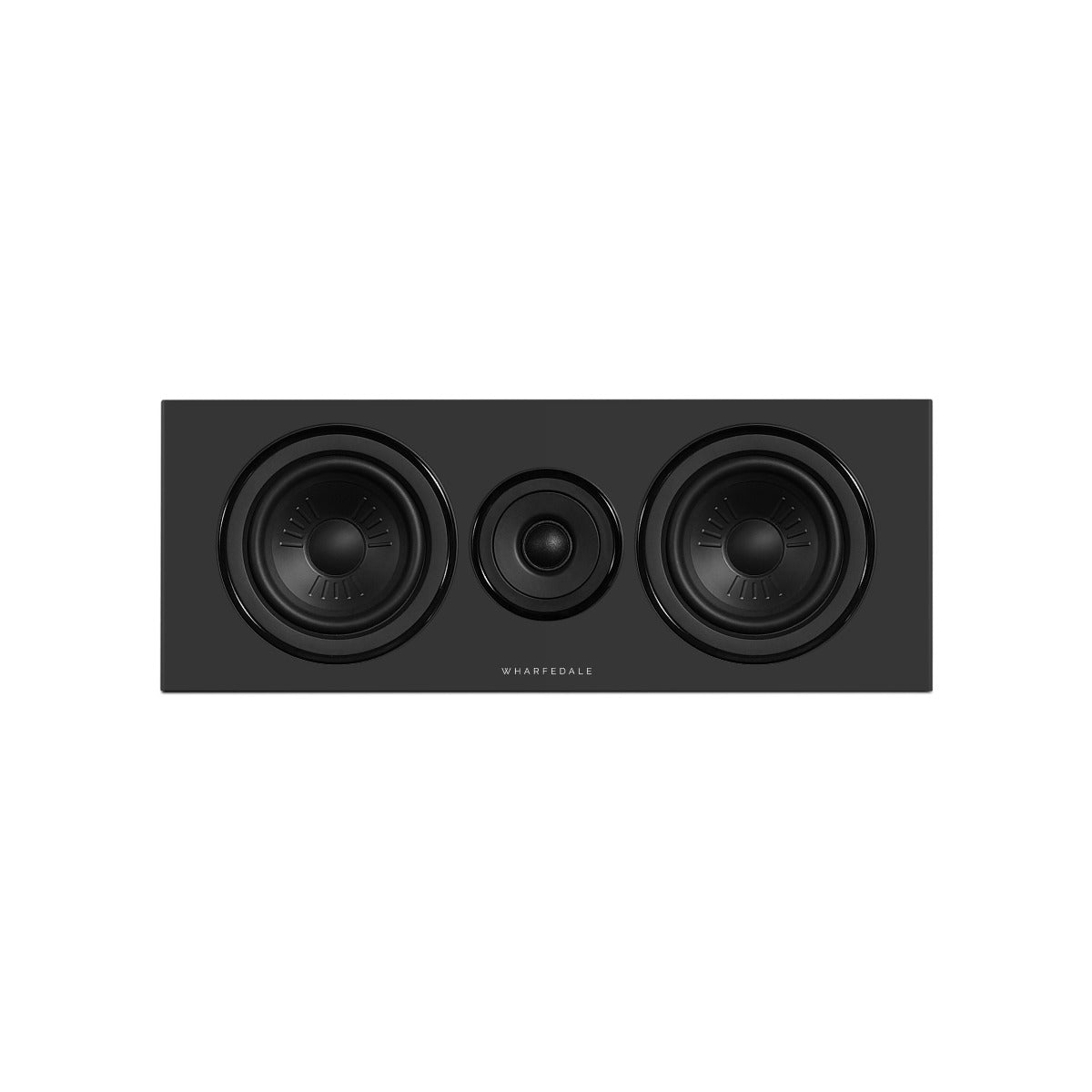

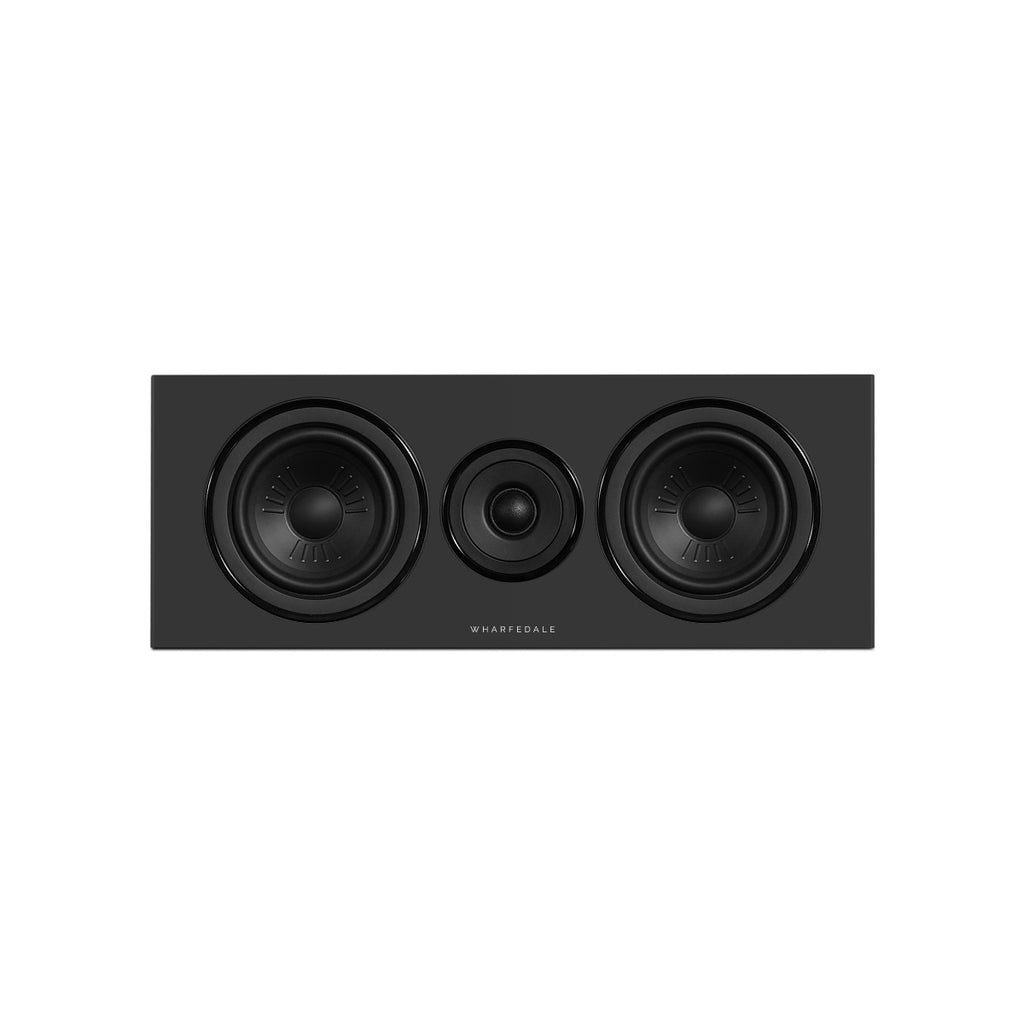

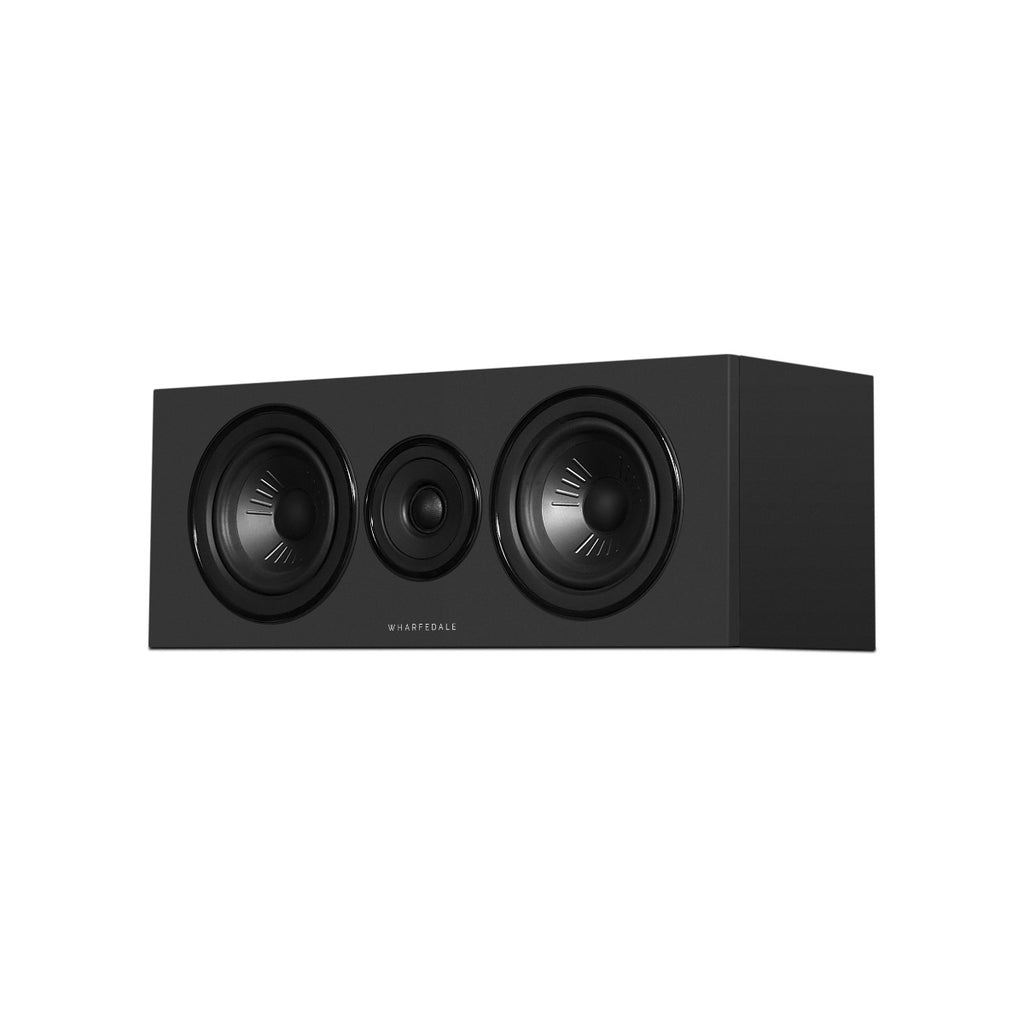

Wharfedale Diamond 12.Ci Centre Speaker
Natural Dialogue With Excellent Clarity
The Wharfedale Diamond 12.Ci Centre Speaker ensures every line of dialogue is reproduced with clarity and precision. Perfectly matched to the Diamond Series speakers, it anchors the front soundstage and keeps speech focused, making films, television and gaming more engaging and easier to follow.
Wharfedale SW-10 Subwoofer
Controlled Bass That Completes The Experience
The Wharfedale SW-10 Subwoofer adds deep, controlled bass that gives films, music and games greater impact and realism. Designed to complement the Diamond Series, it delivers clean, authoritative low frequencies that complete the system with a balanced and immersive cinematic performance.
Wharfedale Diamond 12.3i Floor Standing Speakers
Design: 2.5-way floor-standing speaker
Enclosure Type: Bass-reflex, rear-ported
Bass / Mid Drivers: Dual 5″ (130 mm) Klarity™ polypropylene-mica cones
Tweeter: 1″ (25 mm) textile dome
Sensitivity (2.83 V @ 1 m): 89 dB
Recommended Amplifier Power: 30 – 150 W
Peak SPL: 102 dB
Nominal Impedance: 8 Ω (compatible); Minimum Impedance: ~5 Ω
Frequency Response (±3 dB): 45 Hz – 20 kHz
Bass Extension (–6 dB): ~40 Hz
Crossover Frequency: ~2.2 kHz
Cabinet Volume: ~26.6 litres
Dimensions (H × W × D): ~ (925 + 50) × 180 × (320 + 28) mm
Weight: ~19.5 kg per speaker

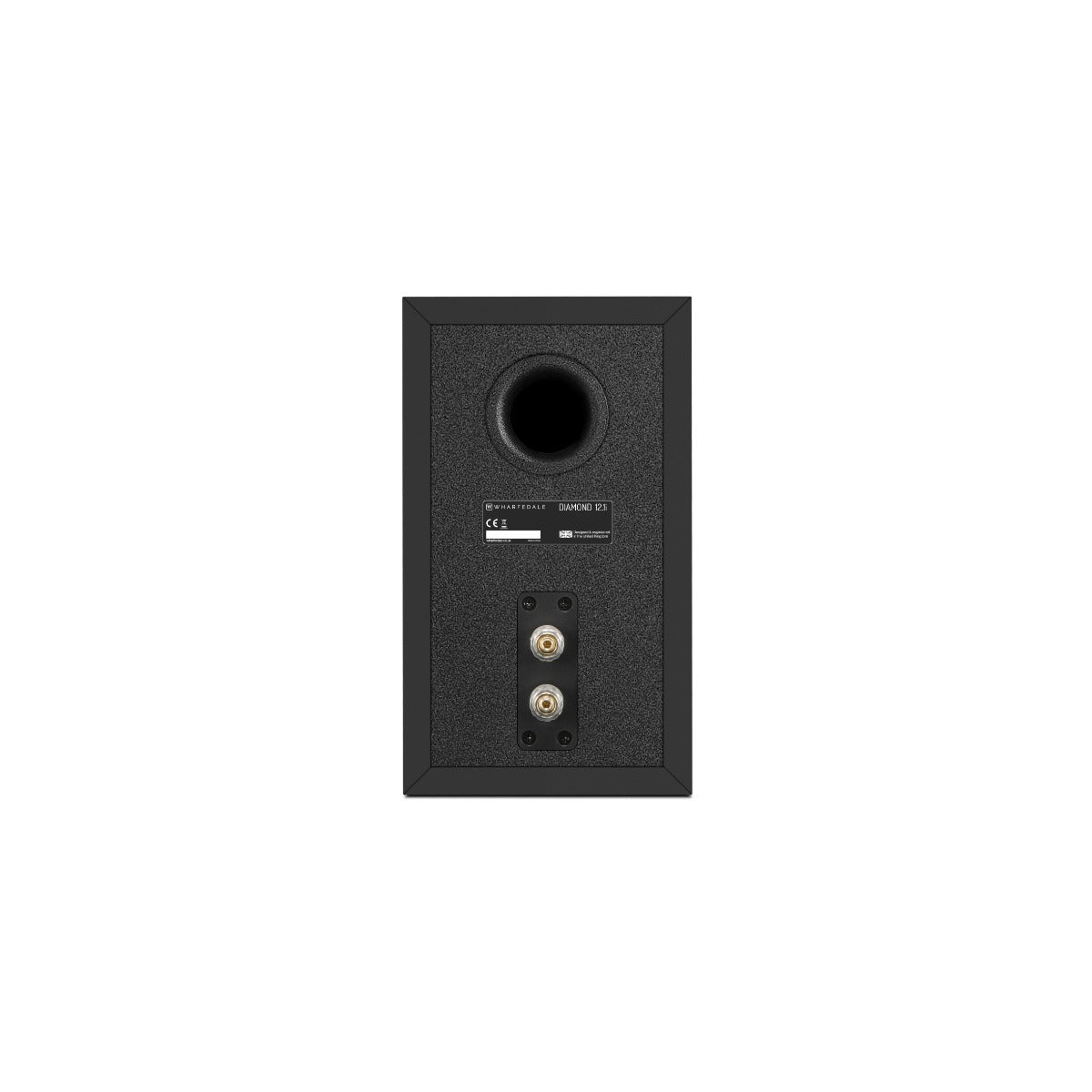

Wharfedale Diamond 12.1i Book Shelf Speakers
Driver Types: 5-inch PP cone mid-bass, 1-inch textile dome tweeter
Sensitivity: 87dB (2.83V @ 1m)
Nominal Impedance: 8Ω
Minimum Impedance: 3.9Ω
Frequency Response: 65Hz–20kHz (±3dB)
Bass Extension: 60Hz (at -6dB)
Crossover Frequency: 2.6kHz
Recommended Amp Power: 20–100W
Cabinet Type: Bass Reflex with rear port
Dimensions (H x W x D): 312 x 180 x 278 mm
Weight: 6.8 kg each

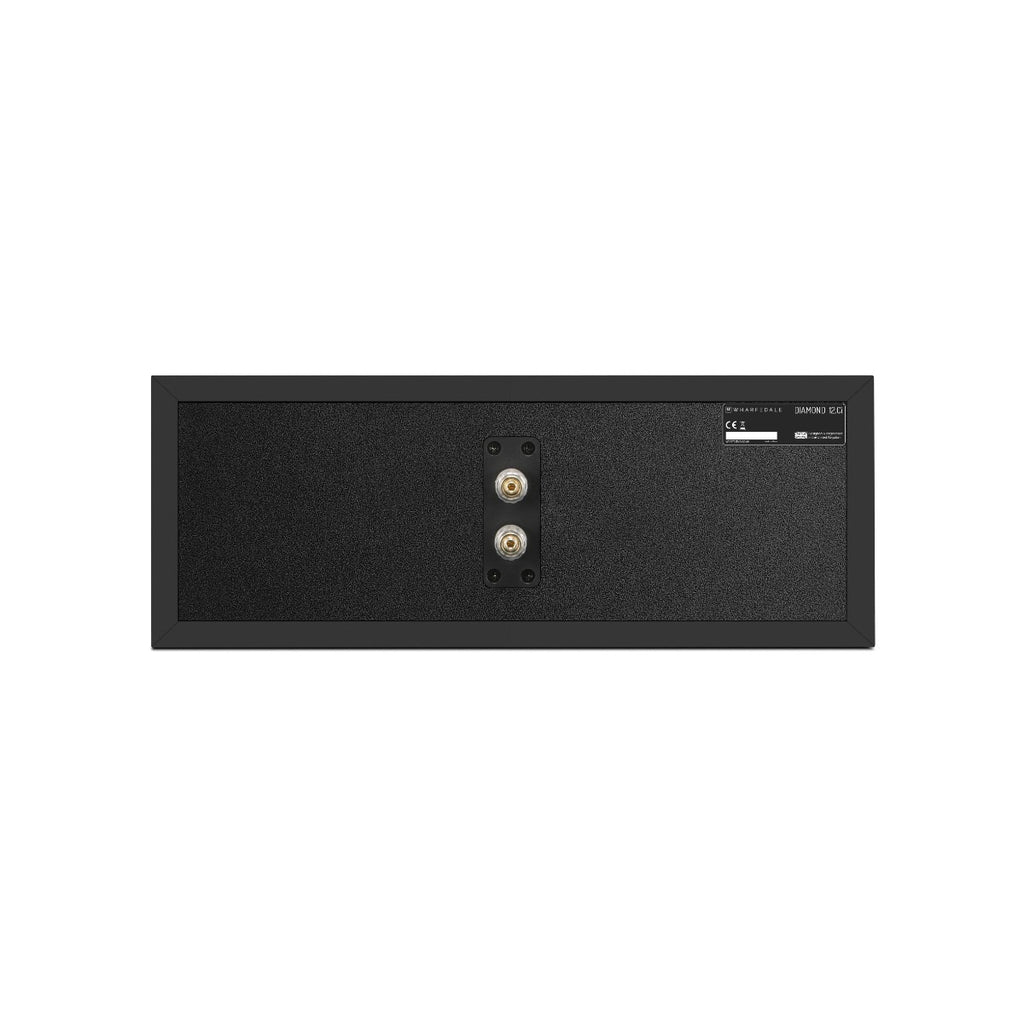

Wharfedale Diamond 12.Ci Centre Speaker
Drivers: 2 × 5″ (130 mm) Klarity™ mid/bass; 1″ (25 mm) textile dome tweeter
Sensitivity: 90 dB (2.83 V @ 1 m)
Recommended Amplifier Power: 20 – 120 W
Peak SPL: 96 dB
Impedance: Nominal 8 Ω, Minimum ~4 Ω
Frequency Response (±3 dB): 90 Hz – 20 kHz
Bass Extension (–6 dB): ~80 Hz
Crossover Frequency: ~2.2 kHz
Cabinet Volume: ~8.7 litres
Dimensions (H × W × D): 180 × 480 × (180 + 28) mm
Weight: 8.5 kg
Wharfedale SW-10 Subwoofer
Drive Units: 1 x (10") 250mm cone long-throw
Frequency Response: 40 - 120Hz ±3dB
Amplifier Power Output: 200W
Peak Power Output: 350W
Line Input Sensitivity: 200mV for maximum output
Crossover Range: 30 - 150Hz
Inputs: Stereo Line In (2 x RCA Phono), Mono (LFE) Line In (RCA Phono)
Input Impedance: Line Input 10kΩ, LFE 5kΩ
Signal-to-Noise Ratio (S/N): ≥85dB
Average Max Output @1m: 110dB
Features: Phase inversion, Auto on-off
Dimensions: Height: (358+58)mm (with feet), Width: 336mm, Depth: (366+15)mm
Net Weight: 15kg
Finishes: Cabinet: Rosewood / Walnut Pearl / White Sandex / Blackwood Vinyl with Hi-gloss baffle
Accessories: IEC power cord
