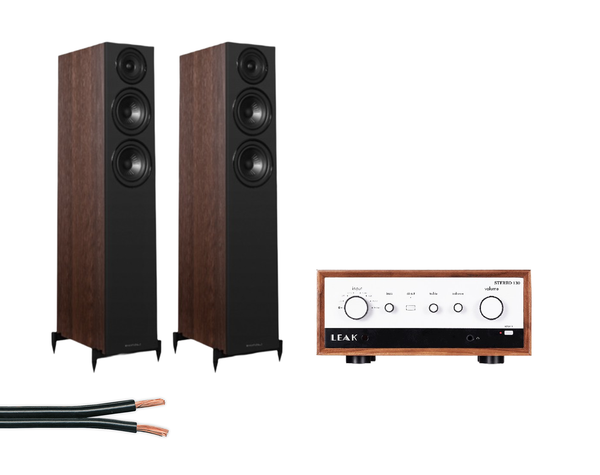

Wharfedale Diamond 12.3i Walnut + LEAK Stereo 230 Integrated Amplifier – Walnut + 5M QED 79 Strand – Black
£1,758.00
✓ 2 Year Warranty included
✓ Authorised UK Dealer

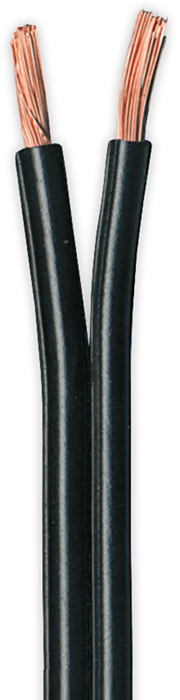

A great combination for a traditional two-channel system, pairing the warm, balanced sound of the Wharfedale Diamond 12.3i with the punch and versatility of the LEAK Stereo 230. The floorstanding speakers provide plenty of bass and scale, while the LEAK adds modern connectivity and ample power. Supplied with 5 metres of QED 79 Strand speaker cable.

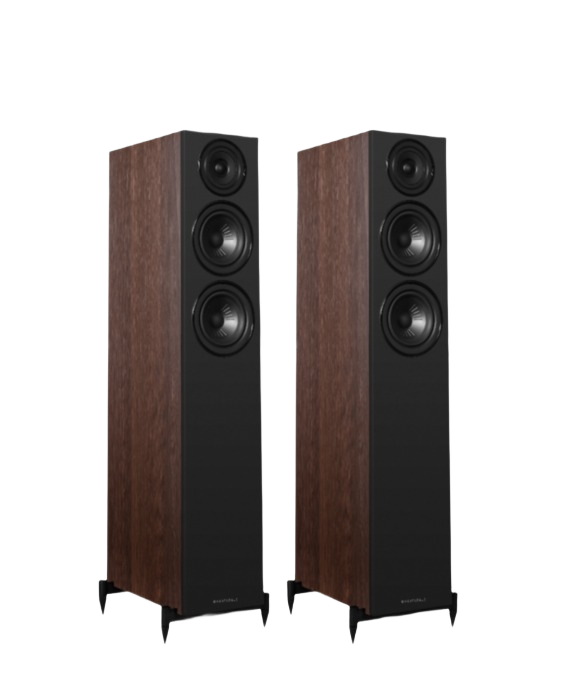

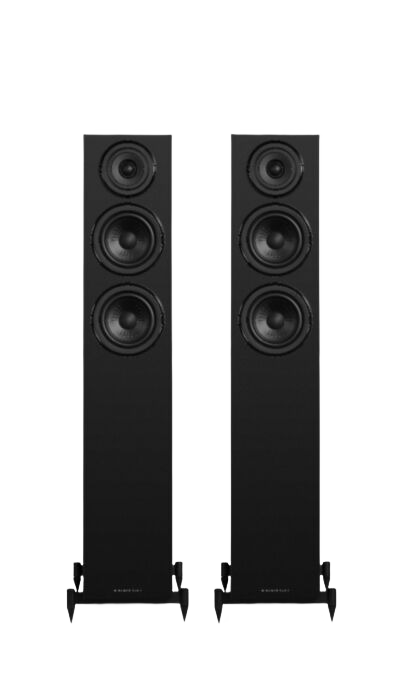

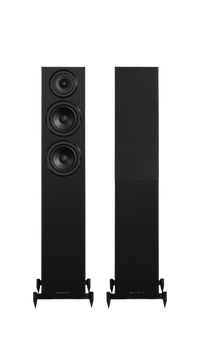

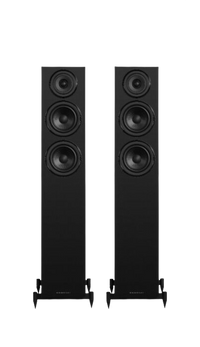

Wharfedale Diamond 12.3i Floor Standing Speakers
Big Sound With A Balanced Presentation
The Wharfedale Diamond 12.3i brings a generous scale to your music, with deep bass, clear vocals and a smooth, detailed upper range. Its three-way design helps separate the different parts of the music, while the carefully constructed cabinet keeps the presentation controlled and composed. They work particularly well in medium to larger rooms where a fuller sound is wanted.

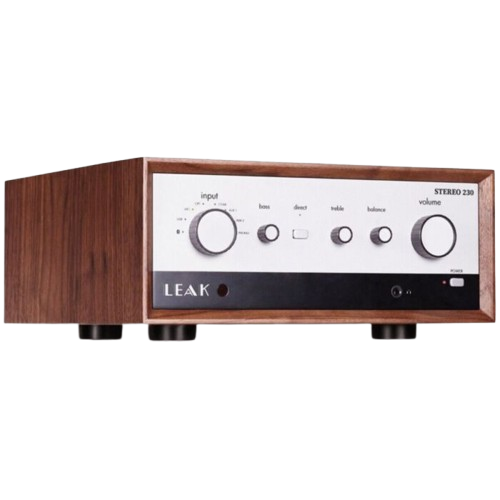

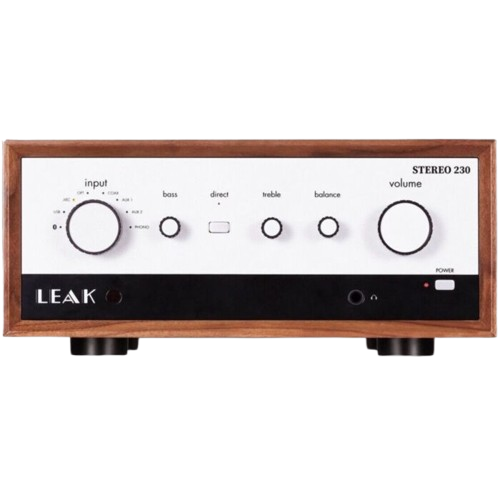

LEAK Stereo 230 Integrated Amplifier
Modern Features With Classic Stereo Performance
The LEAK Stereo 230 combines traditional two-channel amplification with the features expected from a modern hi-fi system. It offers Bluetooth, HDMI ARC, digital and analogue inputs, a built-in phono stage and a dedicated headphone output, making it easy to connect a wide range of equipment. Its powerful output provides plenty of drive for the Wharfedale speakers.
Wharfedale Diamond 12.3i Floor Standing Speakers
Design: 2.5-way floor-standing speaker
Enclosure Type: Bass-reflex, rear-ported
Bass / Mid Drivers: Dual 5″ (130 mm) Klarity™ polypropylene-mica cones
Tweeter: 1″ (25 mm) textile dome
Sensitivity (2.83 V @ 1 m): 89 dB
Recommended Amplifier Power: 30 – 150 W
Peak SPL: 102 dB
Nominal Impedance: 8 Ω (compatible); Minimum Impedance: ~5 Ω
Frequency Response (±3 dB): 45 Hz – 20 kHz
Bass Extension (–6 dB): ~40 Hz
Crossover Frequency: ~2.2 kHz
Cabinet Volume: ~26.6 litres
Dimensions (H × W × D): ~ (925 + 50) × 180 × (320 + 28) mm
Weight: ~19.5 kg per speaker
LEAK Stereo 230 Integrated Amplifier
Amplifier Type: Class AB integrated amplifier with built-in DAC
Power Output: 2 × 75 W (8 Ω) / 2 × 115 W (4 Ω)
D/A Converter: ESS Sabre32 Reference ES9038Q2M
Supported Sampling Rates: Optical/Coaxial 44.1 kHz–192 kHz; USB up to 768 kHz PCM or DSD512
Frequency Response: 20 Hz–20 kHz (± ~0.3 to 0.5 dB)
Total Harmonic Distortion (THD): < 0.003% (1 kHz @ 30 W / 8 Ω)
Signal-to-Noise Ratio (Line Input): ≥ 109 dB (A-weighted)
Input Sensitivity: 550 mV (RCA), 4.1 mV (Phono MM)
Input Impedance: 10 kΩ (line), 47 kΩ // 100 pF (Phono MM)

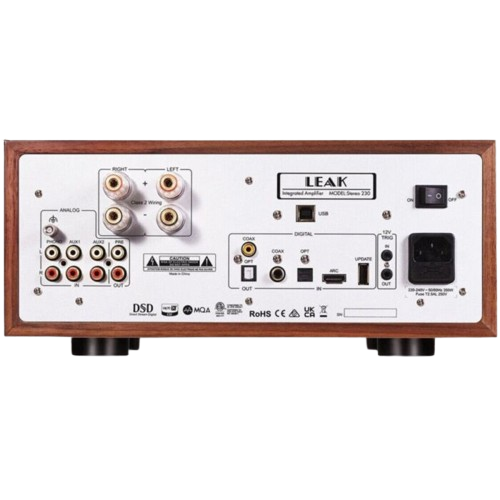

Analog Inputs: 2 × RCA (line), 1 × RCA (MM phono)
Digital Inputs: 1 × Optical (TOSLINK), 1 × Coaxial (RCA S/PDIF), 1 × USB-B, 1 × HDMI ARC, Bluetooth 5.0 (aptX / aptX HD / SBC)
Outputs: 1 × RCA pre-out, speaker binding posts, 6.35 mm headphone jack, digital outputs (optical + coax)
Headphone Amplifier: Current-feedback design, load impedance 16–600 Ω, THD < 0.01% (1 kHz, 50 mW)
